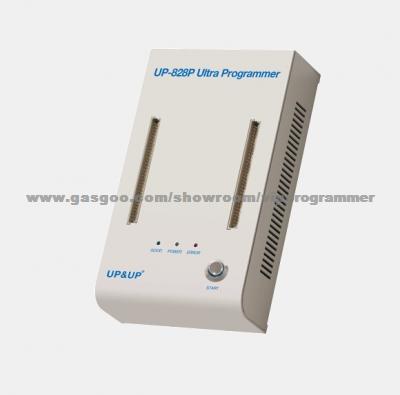

UP-828P High Speed Programmer For Samsung INAND EMMC Flash Memory Programmer

Product Attribute:

Applicationt:

UP-828P High Speed programmer for Samsung iNAND eMMC flash memory programmer

Production Description:

UP-828P High Speed programmer for Samsung iNAND eMMC flash memory programmer, UP-828P High Speed programmer for BlackBerry phones iNAND emmc flash memory programmer, UP-828P High Speed programmer for HTC / Mi / 8721 iNAND emmc flash memory programmer.

UP828P Universal Programmer features
1. UP828 Universal Programmer supports the newest types of FLASH, NAND FLASH, SERIAL FLASH, MoviNAND, iNAND,  eMMC etc, in addition, the BOOT area of iNAND, eMMC and MoviNAND can be read and written;
2. The EMMC 's read/write speeds can reach to 20MByte/sec;
3. UP828 Universal Programmer Support 48MHz read and write pulse, the highest support speed of read and write close to the limits of devices.Program + Verify one 1Gb NAND FLASH only in 34 seconds, program + Verify one 8Mb FLASH only in 4 seconds; Chip Model   N25S80,  S71PL064JB0    K9F1G08U0A   KLM8G2FEJA
Programmer    UP828    UP128    UP828    UP128    UP828    UP128    UP828
Program + Verify (S) 3.4+0.6      null    30.3+1.2    43.4+4.1   22.2+11.4    78.4+167    468.42+458.24
Type    8Mb SERIALFLASH    64Mb NOR FLASH    1Gb NAND FLASH  8GBytes moviNAND
4. 110 pins universal driving, Support VCC of devices from 1.2V to 5V;
