IPM-1DX EMMC EMCP Production Programmer 1 To 8 EMMC

Product Attribute:

Type:Car Polish

G.W:1.5kg

Expiration Date:2022years

Carton size:4inch

Content:3ml

Applicationt:

IPM-1DX eMMC eMCP Production Programmer 1 to 8 eMMC

Production Description:

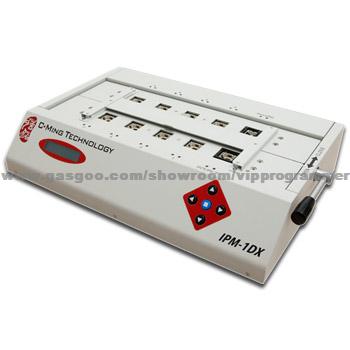

1 to 8 eMMC / eMCP Gang Programmer for Manual Production Line : IPM-1DX
from vipprogrammer.com
Feature:

 1x Master + 8x Target Independent e-MMC/eMCP sockets.
* Supports e-MMC BOOT-1/2, General Purpose-1/2/3/4, and User Data Area Partitions as well as EXT_CSD register settings copy and verify operation.
* Supports MMCA 5.0 compatible e-MMC/eMCP devices.
* Supports e-MMC 8-bit mode working.
* Supports SDR50 bus speed.
* Copy/Verification operation in Partition / Auto / File / Mirror / User / AutoScan mode.
* On-the-fly checksum generation during verify operation.
* Provides EXT_CSD setting checksum info.
* Supports enabling SANITIZE register setting function for MMCA 4.5 e-MMC.
* Supports boot re-size function with e-MMC equipped with boot re-size function.
* Supports User Data Only function; allows mix-up e-MMC operation when valid data is located only in user data area.
* 2x RS232 interface for industrial platform connection.
* Replaceable e-MMC / eMCP device socket module is available.
* Equipped with 1 MicroSD card socket module for firmware update requirement.
* Special designed and strong mechanical jig tool for long time working and easy opening/closing all sockets simultaneously.
