Production Description:

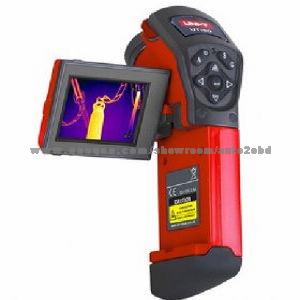

UNI-T UTi80 is Handheld Infrared Thermal imaging camera. UTi80 infrared thermal imager takes the advanced infrared detector with UFPA Uncooled focal plane.
UNI-T UTi80 Handheld Infrared Thermal imaging camera IR
UTi80 Handheld Infrared Thermal imaging summary:
UTi80 infrared thermal imager takes the advanced infrared detector with UFPA Uncooled focal plane and high-quality optical lenses as core, combines with the convenient operating system, leading ergonomic structure design and expansion accessories with perfect function.
the ideal temperature measurement tool, with "clear imaging, accurate measurement, simple operation and portable to carry" for applicable users. It's the optimum choice for on-site temperature detection, preventive maintenance and other application occasions. It can be widely used in electrical, electronic and manufacturing, construction, energy, metallurgy, petrochemical, railroad, automotive and other industries.
UTi80 camera Measureing principles:
Infrared radiation: in nature, any objects with temperature above absolute zero(-273C) with emit infrared radiation to the outside world. The size of radiation energy of object is related to surface temperature of object.
Infrared detector: it's the device which can convert the change of amount of infrared radiation of measured object into power change,i.e. Convert light signals into electrical signals. Infrared thermal imager will focalize the infrared energy radiated from measured objects to infrared detector by optical devices. After the infrared data which each pixel on detector receivers are processed, compare the pre-calibrated temperature data; convert them into standard video format and display, thus the process can be achieved that the heat distribution of measured objects is converted into infrared thermal map. This infrared thermal map corresponds to the thermal distribution on the surface of measured objects. The different colors on thermal images represent different temperatures of measured objects.
UTi80 Infrared Thermal imaging Features:
- Handheld Infrared Thermal imaging camera
- Flip-up LCD
- Surface Measurement Function
- Non-Contact measurement
- Work Constantly in inspect stage
- Auto Alarm
- Thermograph Storagable
Application:
1. Industrial - Inspect Conductor Joint/Cable Clamp Electrical Joint
- Fan Motor, Transfomer Magnetic Shielding
- Gernator Iron Loss Test, Cable Overloaded test
- Analyze Cable Load Distribution
2. Chemical Industry - Inspect Liquid Level
- Test Boiler Refractory Lining
3. Automobile - Inpect Oil Pines, Brake Pad, Airconditional outlet, Car window
4. Building Inspect - Corroded Wall Bushling, Thermal Leakage
- Thermal Leakage of Building's Outer Wall
SPECIFICATIONS UTi80A
Imaging Performance 80*60
Thermal field of view 20° x15°
Spatial resolution 2.20 mRad
Minium Focus Distance 0.1m
Thermal Sensitivity (NETD) 0.08° C@ 30 ° C
Detector Data Acquisition 60Hz
View field angle/Min. imaging distance 10°x7.5°/0.1m (can select other lens )
Detector type UFPA, 80X60
Spectral band 8~14 um
TemperatureMeasurement
Range 1 -20° C to 300° C(extensible to 1500C)
