Autodiagnosticobd.Com UTi160A Thermal Imager Uni-T UTi160A Handheld Infrared Camera
Uni-t UTi160A is Handheld IR Infrared Thermal Imager. UTi160A Thermal Imager is designed to Industrial, Automobile, Building Inspect. Handheld IR Infrared Thermal Imager Imaging Camera 160X120 2.8'' TFT LCD UTi160A.

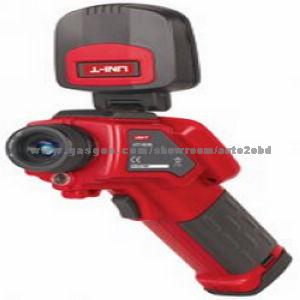

Uni-t UTi160A Handheld IR Infrared Thermal Imager UTi160A
UTi160A Thermal Imager Features:
- Handheld Infrared Thermal Imager Imaging Camera
- Flip-up LCD
- Surface Measurement Function
- Non-Contact measurement
- Work Constantly in inspect stage
- Auto Alarm
- Thermograph Storagable
UTi160A Imaging Camera Application:
1. Industrial - Inspect Conductor Joint/Cable Clamp Electrical Joint
- Fan Motor, Transfomer Magnetic Shielding
- Gernator Iron Loss Test, Cable Overloaded test
- Analyze Cable Load Distribution
2. Chemical Industry - Inspect Liquid Level
- Test Boiler Refractory Lining
3. Automobile - Inpect Oil Pines, Brake Pad, Airconditional outlet, Car window
4. Building Inspect - Corroded Wall Bushling, Thermal Leakage
- Thermal Leakage of Building's Outer Wall
SPECIFICATIONS UTI160A
Imaging Performance
Thermal field of view 20° x15° 6.4° x4.8° 12° x8°
Spatial resolution 2.20 mRad
Minium Focus Distance 0.1m
Thermal Sensitivity (NETD) 0.08° C@ 30 ° C
Detector Data Acquisition 60Hz
Focus Manual
Detector type UFPA, 160X120
Spectral band 8~14 um
TemperatureMeasurement
Range 1 -20° Cto 250° C
Range 2 200 ° Cto 1000 ° C
Range 3 800 ° Cto 1500 ° C
Accuracy ± 2 ° C or 2%
Temperature alarm Max/min
Correction Emissivity (0.1 to 1.0, 0.01 increments), ambient temp., distance, relative humidity
Image Presentation
Digital Display 2.5" LCD
LCD backlight CCFL
Video output NTSC 60Hz / PAL 50 Hz composite video
Pallettes 6
Image and Data Storage
Storage Medium MinIRSDcard/2GB
File format 14 bit measurement data included, SAT format
Interfaces and Software MinIReport
Power, Battery Life
Batterytype Rechargable Lithium Battery
Batteryoperating time 2.5 Hours continous
Batterycharging 1 bay intelligent charger powered via AC outlet
Power saving Automatic shut down and sleep mode
Environmental and mechanical design
Operating temparature Negative 15 to 50 C
Storage temparature Negative 40 to 70 C
Rrelative humidity 10% to 95%, non-condensing
Water and dust resistant IP54
Shock Operational: 25G
Vibration Operational: 2G
Weight (battery included) 2KG
Size 172mmx80mm x 162mm
Tripod mounting 1/4" _20
