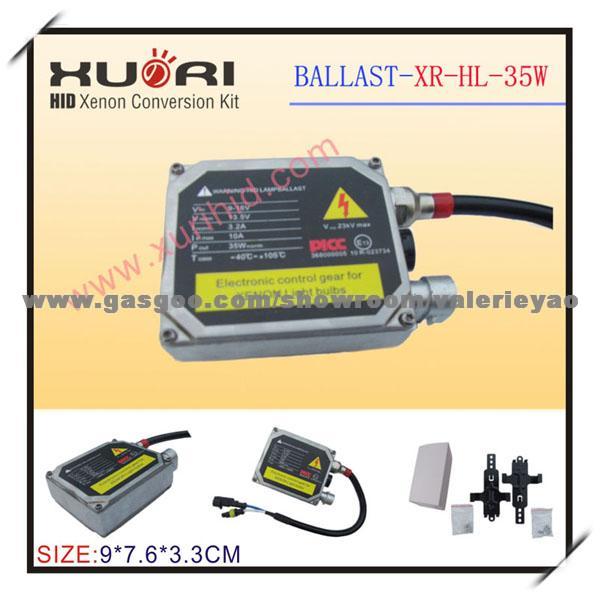

Electronic HID Ballast XR-AC-HL- 35W

Product Attribute:

Voltage:12v

Light Color:White

Color Temperature:6000k

Life:2600h

Applicationt:

All cars

Production Description:

Product Name HID Ballast (Electronic Ballasts)
Product Style  Digital
Product No.    XR-AC-HL- 35W
Product Brand XURI- xuzhiri

 HID Ballast Product Technical Parameters
1) Appearance: Sliver Cover, Sliver Side
2) Product size: 86 * 70  * 30 mm
3) Wattage and Voltage:
12V/35W, 12V/45W, 12V/50W, 12V/55W
24V/35W, 24V/45W, 24V/50W, 24V/55W

1. Start Voltage Range: DC 9V-17V;
2. Input Voltage Range: DC 8V-18V;
3. Stabilized Voltage Range: DC9V-17V;
4. Output Power: 35w±1.5w Constant Power;
5. Efficiency:85%(Input voltage DC 13.2V Condition);
6. Working Temperature: -40-105 C;
7. Life Time: 2600 hrs;
8. Open-circuit Switching: 110,000 times testing in 0.5Hz;
9. Lighting Switching : 210,000 times testing in 0.5Hz;
10. Protection Function: Short/out put protection in 1.5 sec by shutdown;
11. Waterproof, Heatproof, Shockproof, Anti-Electronic Interference and Constant Power Output.


HID Ballast Ignition coil built-in-integrated design:
1. Output open-circuit protection: It will take protective measures automatically in 1s;
2. Output short circuit protection: It will take protective measures automatically in 1s;
3. Waterproof, Heatproof, Shockproof, Anti-Electronic Interference and Constant Power Output;
4. Resistant to high temperature and other adverse environment functions;
5. Good anti-interference function of electromagnetic radiation;
6. Excellent constant power output designs to accommodate a wider light to extend the life time by 50%;
7. Open switches views: Still work after 100,000 or more
