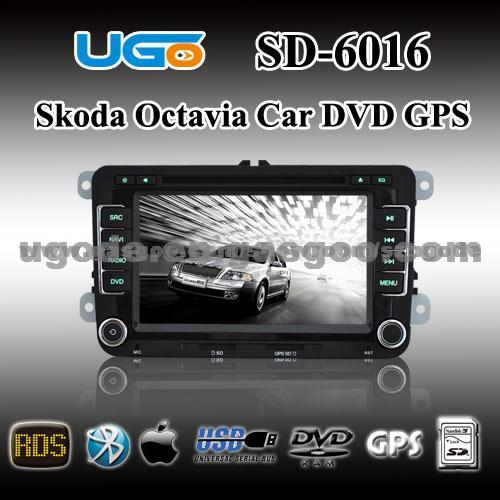

UGODE Car DVD Player For Volkswagen Skoda Octavia Fabia Seat(SD-6016)

Product Attribute:

Video Systems:PAL

Applicationt:

Skoda

Production Description:

Car DVD player for Volkswagen Skoda Octavia Fabia Seat with GPS HD TFT LCD touch screen radio(FM AM RDS) bluetooth A2DP two way canbus support aircondition OPS IPOD dual zone

Main Features:
*Support small screen display(MFD)
*Two way Can-bus system
*Steering wheel control
*Support aircondition and OPS(optical parking system)
*External MIC
*Full Function Remote Control
*Digital TV tuner optional(DVB-T)(ISDB-T)
*TMC optional:Traffic Message Channel
*Front Button Light Color Display (green)

Specification

System
Working voltage:DC 11V14V
Working current: MAX15A
Standby current:< 25 mA
Video system:  Automatic PAL or NTSC
Display Screen
Screen Type: Digital TFT LCD touch screen
Resolution: 800*480

GPS
ProcessorAdopt SAMSUNG High performance processor S3C2443
Max. main frequency: 533MHZ
EMS Memory128MB SDRAM
Storage device128MB NAND FLASH, Support SD/MMC Card.
Operation system: Wince5.0
Display output: RGB output
Resolution: 800*480
Audio outputStereo output of CD tone
Human machine interfaceSupport infrared remote control and touch screen operation
GPS specificationAdopt the latest?SiRF STAR III 20 channel and excessive high sensitivity GPS receiving module REB-3310
Orientation sensitivity reach -159dBm
Orientation precision< 10M
Orientation time of cold boot: 42S
Orientation time of warm boot: 35S
Orientation time of hot boot: 1S
Power specificationConnect car power: DC12V,Current< 500mA
Consumption: 4.5W(12V/360mA)
Normal power consumption: 3W(12V/250mA)
