Product Attribute:
Supply Ability:500 Piece/Pieces per Day
Delivery Details:3 to 20 days after receiving payment
Production Description:
Shenzhen Topsee Technology Co., Ltd. was established in 2006.We are professinal OEM/ODM automotive reversing system manufacturer for 6 years,involved in items of Designing,Research and Development,Manufacturing and Export,we are aiming supply high quality products to customers all over the world.
1.Technical Specifications and more photo pictures
| MONITOR: | CAMERA: |
| Screen size | 5 inch | Image Sensor | CMOS/CCD(optional) |
| Display mode | 16:9 | Lens Angle | 170° |
| Resolution | 800*480 | Resolution | 420 TV line |
| video input | Two ways vedio input | AGC&BLC | Auto |
| | | S/N Ratio | > 45dB |
| | | Minimum Illumination | 1.0Lux/(0Lux with led on) |
| | | Water-proof | IP67 |
| Power supply | 12V±10%/24V(optional) |
| Power consumption | 3 W±10% |
| Format | NTSC/ PAL |
| Storage Temperature | -30°C~60°C,RH95%MAX' |
| Operating Temperature | -20°C~50°C,RH95%MAX' |
2.4G digital wirless module
1. Transmission Frequency:ISM 2,400MHz~ 2,483MHz
2. Transmission Power: 20dbm/100mw
3.Receiver sensitivity: -89dBm
4.Transmitter power supply:DC=9-28V
5.Receiver power supply:DC=9-28V
6.Vedio in:PAL/NTSC
7. Unobstructed Effective Range:200m
8.Operating Temperature:-30~+70 degree Celsius
9.Vedio out:PAL/NTSC
10.Whole set work current: 400MA
11.Customer can choose different monitor and camera to compose a set of
reversing system.
as long as the signal out or in is CVBS signal,it will match with our 2.4G wireless module
Main feature:
1.car revering distance reference line(optional)
2.Mirror image and oringal image(optional)
3.High resolution rearview camera that works at night or day
4. Smaller size design for easily installed in the behind of car
5.Waterproof, Shockproof ,antifog ,high temperature resistance,humidity resistance,high definition long-lasting outdoor using camera
6.Simply pair it with a LCD screen ,DVD Player,sunvisor,rearview mirror
7.Automatically showes the reverse picture when the vehicle is reversing.Assists driver with the ability to park
safely.when the reverse gear is engaged,the system automatically starts to find the camera signal and display
the backup video.The system switches off antomatically when the vehicle is no longer in reverse gear.
8.High quality wireless connector module,digital stable singnal,no interference,launcher connect to the camera,and sent the signal to monitor receiver.receiver receive the signal and input the monitor

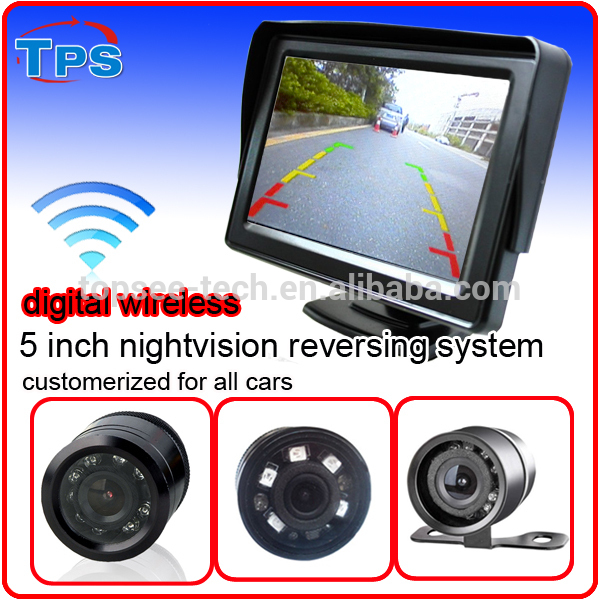

Monitor pic disply:
you can choose one of the following cameras:
Camera pic display:
28mm diameter 9IR lens camera JMD-2801C
23mm diameter 5IR lens camera JMD-2301C
9IR lens plug-in caemra JMD-P104C
2.4G digital wireless module pic display:
Installation guide:
1.Connect the transmitter to camera,receiver to monitor,then take power from the car.
2.Touch down the transimitter reset button,the transimitter will send a singnal,you need to
touch down the receiver reset button within 30s to match the signal.
2.certification
3.More details for your reference
♥ MOQ: MOQ =100pcs,first business sample is ok,and we charge $10.00sample fee.
♥ Trade Terms: EXW(FOB,CIFetc.are available too)
♥ shippment:TNT.FEDEX.DHL.UPS.EMS
♥Lead time:5-7days according to model and quantity.
♥Payment Terms: T/T,West Union,paypal
♥warantee:one year after shippment
