Product Attribute:
Supply Ability:1000 Piece/Pieces per Month 300pcs/week
Delivery Details:1-3 days for sample
Production Description:
Specification |

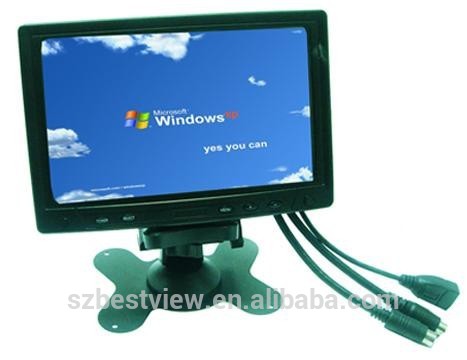

Name | 7″Digital TFT LCD Monitor |
Model | YT702 |
Description | 7″ TFT LCD Monitor(4wires resistive touch panel) |
Case/Bezel Color | Black |
Touch Monitor Performance | Standard |
Display Type | 16:9 Ratio 7″Active Matrix TFT LCD |
Active Display Area | 152.4(H) X 91.44(V) mm |
Native Resolution | 800 x 480 @ 60Hz _1024 x 768 @ 75Hz |
Sychronization Range | 30-80 KHz horizontal, 55-75 Hz Vertical |
Pixel Pitch | 0.1905(W) X 0.1905(H) mm |
Pixel Response Time Rise + Fall (Typically) | 10ms |
Plug and Play | VESA DDC 1/2B |
On Screen Display (OSD) | On Screen Display (OSD) |
Colors | 16.7 million |
Brightness | 300 cd/m2 |
Contrast Ratio Typically | 400:01:00 |
Viewing Angle Horizontal (left/right) | 170° (85°/85°) |
(From Centre, CR>=5) Vertical (up/down) | 160° (70°/90°) |
Backlight Lamp life Hrs to 1/2 brightness | 50,000 |
Input Video Format | Analog RGB, CVBS NTSC/PAL (AUTO) |
Monitor Dimensions | 178 x 121 x 30(mm) |
Shipping Carton Dimensions | 300 x 218x 85(mm) |
Provider Weight (approximately) Monitor/Shipping | 1.7kg |
Power Supply | External: 85-265VAC, 50-60 Hz |
Power Consumption | <10 W Typ |
Temperature Range | Operating:0°C-50°C, Storage:-20°C-80°C |
Relative Humidity Non Condensing | Operating:10%-90%, Storage 5%-90% |
Warranty | 1 year warranty |
Agency Approvals | FCC, CE, ROHS |
Typical Applications | Entertainment /Casino Systems Outdoor and indoor Kiosks Entertainment Transport and Ticket Television station Education Exhibition Advertisement Hotel/Hospitality Car PC Industry equipment Banking Customised Solutions |
Accessories |
USB Cable | 1 piece ( touch function available ) |
VGA Cable | 1 piece |
BNC cable | 1 piece |
Video/audio cable | optional |
Remote | 1 piece |
Power adapter | 1 piece, UL certificate passed |
Power Lead (U.S., EU, UK type etc.) | 1 piece |
User Manual (English) | 1 piece |
Stand | 1 piece |
About payment:
We accept West Union, TT(HSBC),L/C for big order is also available. All major credit cards are accepted through secure payment processor ESCROW.
About shipment
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification. All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.
3. The images shown are not the actual item and are for your reference only.
4. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
About warranty:
1. All products are 100% original and tested before shipment.
2. 1year warranty, supply replacement or offer new parts according to our communication.
3. Customer's satisfactory is ETERNAL TEAM ultimate goal. If you are satisfied with our products and service, please leave us a 5 stars feedback. We will be very appreciated that.
Company profile:
BESTVIEW Electronic Co., Ltd. established in July 2003, one of earliest & high-tech integrating enterprise which dealing in various size touch LCD, USB display, HD monitor, big LCD splicing wall and advertising machine with production, research and development . He is the best provider in the LCD special solutions field and well-known domestic and oversea.
