PRODUCT DESCRIPTION

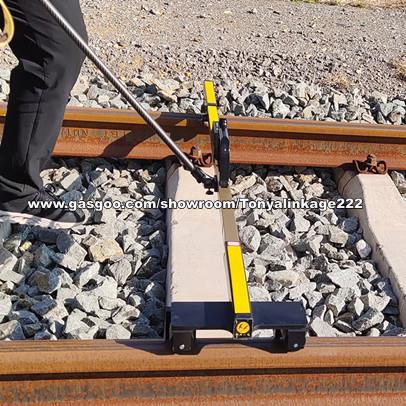

The portable rolling track gauge is designed for measuring the track gauge and super-elevation.The lightweight ,reliable and easy to use device offers unique measurement accuracy.
The software system support for storing and analyzing the measuring data. It can be used for track inspection and rail maintenace. It is easy to carry, and night-time and tunnelwork, legible even in direct sunlight are supported which is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying .
The lightweight ,reliable and easy to use device offers unique measurement accuracy. It is easy to carry, and night-time and tunnel work.
Model (1435mm)
GJC-JJG0
Track gauge(mm)
1410-1470
Superelevation measuring range
-185~+185
Display mode
OLED display and hand-held terminal display
Supply Voltage
DC3.4V5.2V (rechargeable battery)
Superelevation division value
0.05
Working temperature
-30+55
Insulation performance
1M
Track gauge division value
0.01mm
0.05mm
Track gauge max indication error
±0.25mm
Superelevation max indication error
±0.3mm
Length
1700mm
Net Weight
6.5kg
