Production Description:
Diesel
fuel injection pump delphi common rail injector test bench
Product Description

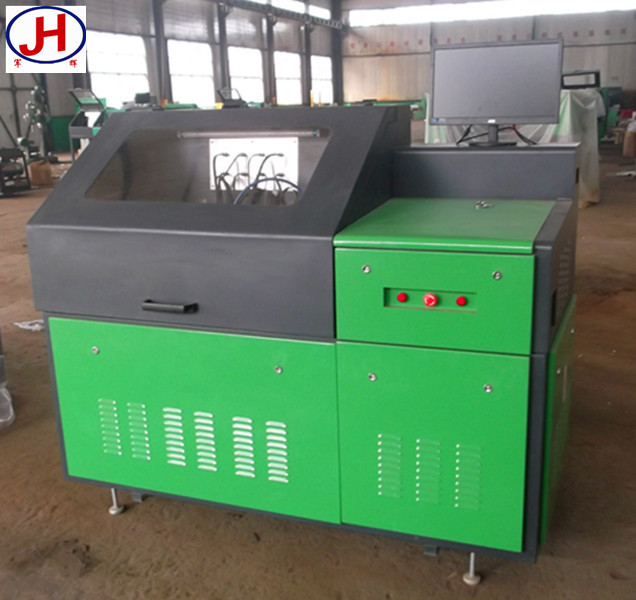

JH-H Fuel Injection Pump Test Bench
Characteristics
1.Variable frequency speed regulation;
2.Small deceleration and large output torque;
3.High measurement precision;
4.Overvoltage protection, overload protection and short-circuit protection;
5.Ten kinds of rotation speeds presetting;
6.Constant temperature control;
7.Ultra-low noise;
8.Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;
9.Rotation speed, count and temperature are displayed in digit mode, and air pressure is displayed on the mechanical gauge;
10.Built-in air resource.
Function
1.Measuring each cylinder’s injected oil quantity at various rotation speeds;
2.Checking each cylinder’s injection time statically;
3.Checking the mechanical speed governor;
4.Checking the electromagnetic valve of distribution pumps;
5.Checking the pneumatic speed governor’s performance;
6.Checking the pressure compensator’s performance;
7.Measuring the returned oil quantity of distribution pumps;
8.Measuring the internal pressure of the distribution pump body;
9.Checking the pneumatic speed governor’ s vacuum performance;
10.Checking the sealing of fuel injection pump body.
Technical Parameters
|
1.Adjustable rotation speed range:
|
0~4000RPM
|
|
2.Double series of graduates:
|
45cc and 1500cc (optional)
|
|
3.Volume of oil tank:
|
60L
|
|
4.Temperature stabilization:
|
40±2?/p>
|
|
5.Test oil filtering unit:
|
5μ
|
|
6.DC supply:
|
12V/24V
|
|
7.Fuel feed pressure:
|
low: 0~0.4MPa, high: 0~4Mpa
|
|
8.Air pressure:
|
0~0.3MPa, -0.03~0Mpa
|
|
9.3-phase power supply:
|
380V/50Hz or according to requirements
|
|
10.Flywheel inertia’s moment:
|
0.8KG·M2
|
|
11.Center height:
|
125MM
|
|
12.Output power:
|
7.5KW, 11KW, 15KW or according to requirements
|
|
13.Overall dimensions(MM):
|
2360×960×1870 or according to requirements
|
|
14.Net weight(KG):
|
1300kg
|
