Product Attribute:
Type:Acid Lead Battery
Capacity:<30AH
Voltage:6V
Size:97x24x52x59(mm)
Car Make:N/A
OE NO.:N/A
Place of Origin:Hubei China (Mainland)
Brand Name:VCELL
Model Number:6VC1.3Ah
Certificate:UL, CE, ISO 9001:2000, ISO 14001:2004, SA8000
Design life:5 years
Container Material:ABS
Layout:A
Warranty:1 year warranty period
OEM:Yes
Terminal type:FO-01
Maintenance Type:Free
Sealed Type:Sealed
Weight:0.35kg
Production Description:
6V 1.3Ah VRLA SEALED LEAD ACID BATTERY
1.delkor battery
2. 3-5 year in standy service;
3. 400 cycles at 50% DOD in cycle service;
4. 1 year warranty.
Specification:
NOMINAL VOLTAGE | : 6V |
NOMINAL CPACITY(20hr) | : 1.3Ah |
DIMENSIONS | |
TOTAL HEIGHT | :59mm ( 2.32inches ) |
CONTAINER HEIGHT | :52mm ( 2.05inches ) |
LENGTH | :97mm ( 3.82inches) |
WIDTH | :24mm (0.94inches) |
WEIGHT | : APPROX 0.35Kg ( 0.77ibs) |
CONTAINER MATERIAL | : UL94HB ABS |
| | : UL94V-0 ABS |
INTERNAL RESISTANCE ( 25°C,77°F) | : ~42.5mΩ |
DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES |
40°C | : ~102% |
25°C | : ~100% |
0°C | : ~85% |
"VC" series is a general purpose delkor battery with 3-5 years in standby service or more than 400 cycles at 50% depth of discharge in cycle service.
Features:
* Valve regulated design with close to 100% gas recombination during float charging.
* AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.
* Maintenance-free operation - no addition of water to the electrolyte is required.
* Corrosion resistant high current drain grid achived by a lead-tin-calcium alloy.
* Heavy duty grids resulting in high performance and durability.
* Wide range of operating temperatures with temperature compensated charging.
* Excellent charging efficiency.
* Classified as "non-spillable" and therefore exempt from IATA Dangerous Goods Regulations.
* Excellent cyclability properties (at normal depths of discharge), batteries may meet or exceed 1000 discharge/charge cycles.
* Extended service life due to low self-discharge levels.
Applications:
* Uninterruptable Power Supply (UPS)
* Telecommunication
* Emergency lighting
* Fire alarm and security systems
* Medical appliance
* Solar applications
* Electronic test equipment
* Electronic measuring devices
* Geophysical devices
* Marine equipment
Appearance:

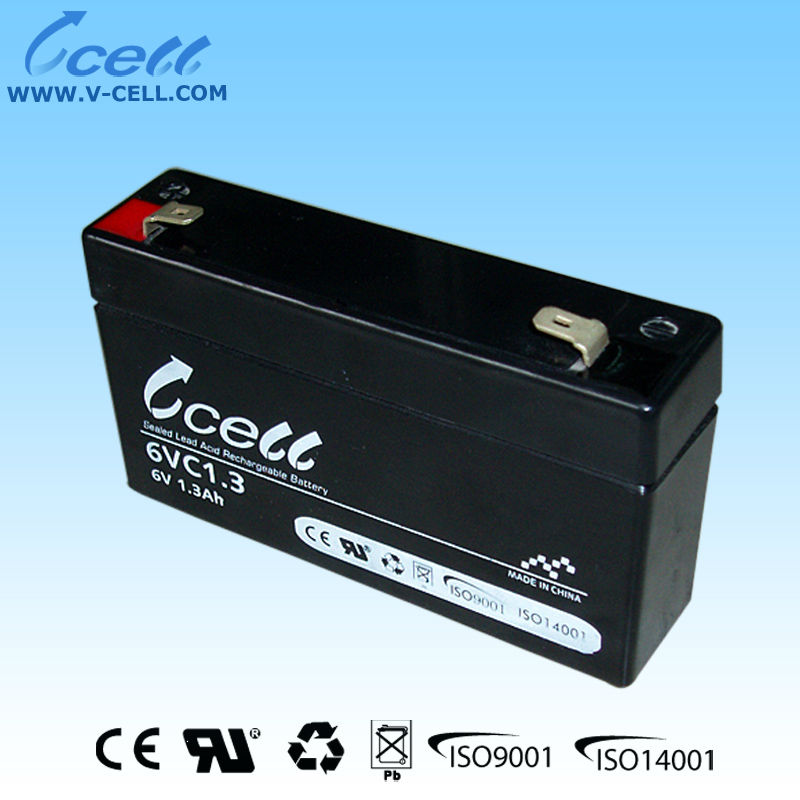

Battery: 6V 1.3Ah VRLA SEALED LEAD ACID BATTERY
Our factory:
