Product Attribute:
Model : 1
Supply Ability:1000 Unit/Units per Month
Delivery Details:30 days
Production Description:

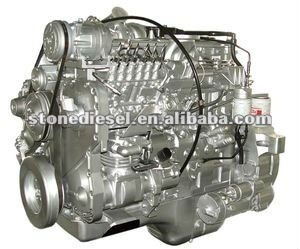

cummins L300-20 diesel engine for vehicle
L300-20
Displacement8.9L
Bore114mm
Stroke145mm
Advertised Power221kW@2200r/min
Peak Torque1250N.m@1400r/min
Cylinders6
Fuel SystemBOSCH Pump
AspirationTurbocharged& Aftercooled
CertificationEuro II
Weight Dry(with flywheel and alternator, but less starter and air compressor)650kg
Weight Wet680kg
Center Of Gravity Distance From Front End Of Cylinder Body427mm
Center Of Gravity Distance Above Crank Centre Line163mm
Maximum Bending Moment At Behind End Of Cylinder Body1356N.m
Maximum intermittent5338N
Maximum continuous2670N
Performance Data
Idle Speed700±100r/min
Maximum no load governed speed2500r/min
Maximum overspeed capability(15 secs max)3500r/min
Maximum altitude for continuous operation2000m
Clutch engagement torque at 800r/min780N.m
Exhaust pressure,at 2720r/min,at turbocharger outlet,must not exceed450kPa
Approximate engine retardation114kW
|
Engine model
|
Advertised
|
Peak torque/speed
|
|
|
power/speed
|
(N.m/rpm)
|
|
|
(kW/rpm)
|
|
|
|
|
|
|
EQB125-20
|
92/2800
|
410/1500
|
|
EQB140-20
|
103/2700
|
502/1500
|
|
EQB160-20
|
118/2500
|
550/1600
|
|
EQB170-20/21
|
125/2500
|
570/1500
|
|
EQB180-20
|
132/2500
|
610/1500
|
|
EQB190-21
|
140/2500
|
640/1300-1500
|
|
EQB210-20
|
155/2500
|
700/1500
|
|
EQB235-20
|
173/2500
|
800/1400-1600
|
|
C220 20
|
162/2200
|
800/1400
|
|
C230 20
|
169/2200
|
830/1400
|
|
C245 20
|
180/2200
|
1025/1400
|
|
C260 20
|
191/2200
|
1025/1400
|
|
C280 20
|
206/2200
|
125/1400
|
|
C300 20
|
221/2200
|
1125/1200-1400
|
|
C325 20
|
239/2200
|
1125/1200-1400
|
|
L300 20
|
221/2200
|
1180/1400
|
|
L325 20
|
239/2200
|
1230/1400
|
|
L340 20
|
250/2200
|
1350/1400
|
|
L360 20
|
264/2200
|
1480/1400
|
