Product Attribute:
Place of Origin:Guangdong China (Mainland)
Brand Name:Lonconmirror
Model Number:LC-073MAM
Type:Interior Mirror
Function:Mirror Link
Product name:rear view mirror monitor
Adjust the Angle:automatic control
Certification:FCC,C-TICK, E-MARK, CE etc
color availbale:black
Type:Car Interior Rearview Monitor
Shell material:PC alloy
Screen Size:4.3 inch HD TFT LCD Screen
Placement:windscreen/ sunvisor
Export Markets:Global
Package:White Box(OEM)/Carton Box
Production Description:
Product Description

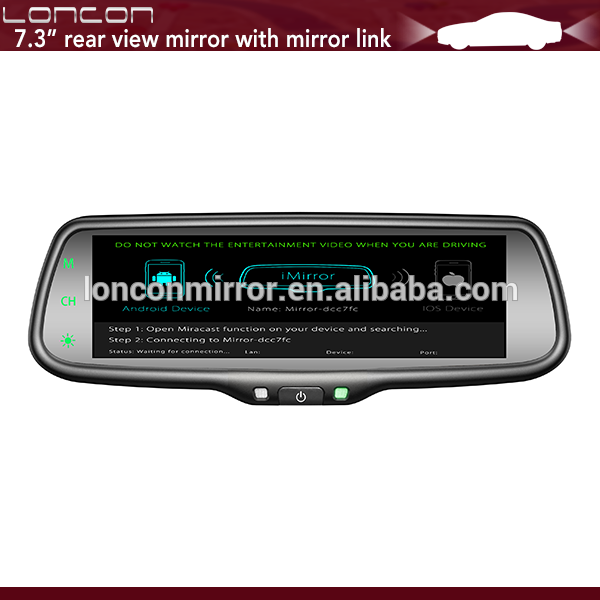

wide screen Mirror link of information synchronization and 7.3 inch LCD monitor rear view mirror monitor
Main features:
1. Mirror link of information synchronization with Android/ IOS device
2. 7.3" High brightness wide screen monitor/ mirror
3. 3-way video input including backup camera and 2 video inputs
4. Automatic monitor brightness adjustment
5. Split videw for second and third video inputs
6. 4.0 mm glass and 3 OEM style mounting brackets
7. Adjustable backup guide lines
8. Remote control for user selectable features
Car Backup Camera Features:
1. 1/3 sony CCD
2. Image device: Camera
3. TV system:NTSC/PAL
4. Effective pixels:PAL:628(H)x582(V) NTSC:510(H)x 492(V)
5. Sync. System:internal
6. Resolution:420 TV lines
7. Vertical sync frequency:internal
8. Minimum lumination:0.05Lux
9. Lens:13.5mm
10. View angle:170 deg.
11. S/N Ratio:better than 48dB
12. Electronic shutter:1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
13. Video output:1.0Vpp 75ohm
14. Current consumption:90mA
15. Power supply:12V
16. Operating temperature:-30 to + 85°C, 95% RH maximum
17. Storage temperature:-40 to + 100°C, 95% RH maximum
18. Water-proof:IP67
Packaging & ShippingPackage Content:
1. MIRROR
2. CABLE
3. ACCESSORIES
4. USER MANUAL
5. CAMERA(OPTION,if you buy our camera)
we have the brackets for almost all cars, Pls send us the picture of your bracket for our final confirmation. Because we're responsible to you, we just want to avoid any mistake and offer your the service and product that you're satisfied with.
Shipping:
1. Tracking number will be emailed to you once we have shipped your order. If there is any delay, it may be caused by bad weather or custom inspection. If you still can not receive the item within 20 DAYS, pls contact us.
2.We try our best to make you get desired products as soon as possible. In case you receive wrong products due to shipping error, please contact us for exchange or refund. If it's damaged , please refuse to accept and contact us as soon as possible.
3.We are not responsible for wrong or undeliverable address. Please provide us your full address with Telephone number and make sure your shipping address is correct and deliverable.If you need to change your address, please change it in PayPal first before you pay.
Our Services1.All products will be checked and tested one by one by our QC team
2.we have our forwarder agent, so the shipping fee is economical.
3.we have a perfect after-sale service team to help you solve the problems that you meet within 72 hours .
4.Our office located in Taiwan, but factory located in Shenzhen, China. we can get the newest information and then inform you.
FAQ*What is auto adjusting brightness?
The brightness(only for the 4.3"display screen,not for the entire mirror) will change automatically according to the environment light. When the environment light become stronger, the screen brightness will increase accordingly to ensure more distinct image in strong light. When the environment light become weaker, the screen brightness will decrease in order to protect eye against being stimulated due to over-brightness of the screen.
* Which Mirror bracket (Mount) works for my car?
We have many OE style brackets for most of the popular cars (See below compatible vehicles list) but we highly suggest you to send us a photo of your original bracket bottom and tell us your car makes and model. then we will confirm to you which bracket NO. is matched for your car, and make sure you leave us message about bracket NO. when ordering, other wise, we will send you bracket as default
