Product Attribute:
Applicationt:
cars
Production Description:

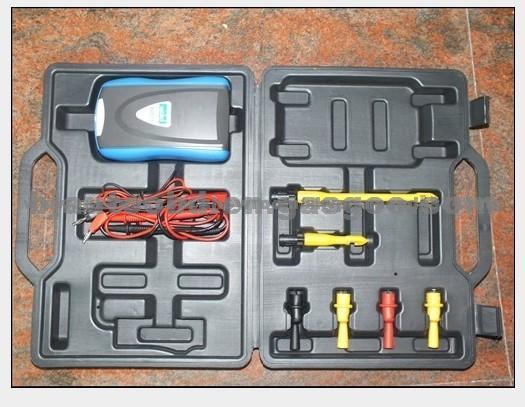

Automotive Sensor Simulator & Tester ADD71
Measure the signals of automotive sensor
Digital display shows actual output of signals
Automotive Sensor Simulator & Tester ADD71
good quality with competitive price
one year warranty
quick delivery
Specifications
1. Measure the signals of automotive sensors
2. Allow simulation of most sensor and computer management components
3. Check basic ECU operation
4. Eliminate unnecessary replacement of non-defective sensors 1. Measure the signals of automotive sensor
The most complete hand held diagnostic tester for sensors,wiring,connectors and on-board computers DC voltage,lambda,frequency and pulse signals can be measured·
2. Digital display shows actual output of signals
3. Measures any voltage AC or DC,resistance or frequency output ,Allows Simulation of most Sensor and computer management components.
4. Simulating temperature sensors,throttle potentiometers,switches,air flow meters andlembda/oxygen srnsors
5. Features AC voltage output to simulate vehicle speed sensors(vss),CAM,CRANK,and ignition reluctors
6. Simulates actual working condition of any sensor without having to remove it from the vehicleA.B.S.,Crank,Can,Coolant,Oxygen,MAP,MAF,MAT,VSS,etc
7. Cheeks basic ECU operation
8. Controlling the signals being produced allows you to check ECU response and operation.This prevents mis-diagnosis where the fault may lie in the ECU itself or in the wiring between the component and the ECU.
9. Works independently or with any scan tool ever made
10. Can be used on any domestic or import vehicle
11. Eliminates unnecessary replacement of non-defective sensor
12. Can drive computer into"open or closed loop."
SPECIFCATIONS
Simulate Signal Range Function
1. DC Voltage :
0-1V Simulating lambda/oxygen sensors
0-5V Simulating DC signal of sensors
0-12V
2. Resistance:
0-5K Simulating temperature or resistance sensors
0-200K
3. Frequency Signal V/Duty/Hz
0-5v 10-90% 10-4KHz Simulating frequency signal sensors
