Applicationt:
any
Production Description:
Digital Oscilloscope UNI-T UTD4104C
good quality with competitive price
one year warranty
quick delivery
skype is amanda924fung

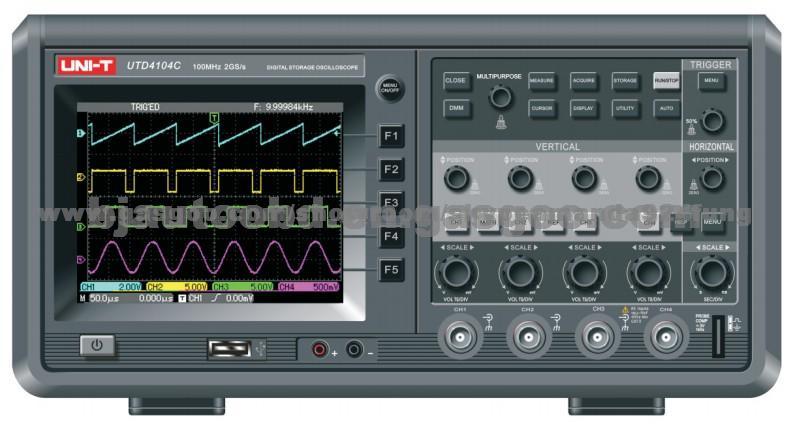

UNI-T UTD4104C Digital Oscilloscope is a four-channel digital oscilloscope with a frequency meter and digital filter. 100 MHz bandwidth
and 2 GSa/s real-time sample rate ensure detailed dispalying of high-frequency waveforms. UNI-T UTD4104C is characterized by a digital multimeter function. Convenient 5.7-inch color liquid-crystal display of the oscilloscope ensures bright and sharp waveform representation.
UNI-T UTD4104C Digital Oscilloscope is a good choice for production tests, R&D, design
and all other applications involving testing and troubleshooting, as well as education
and training.
UNI-T UTD4104C Digital Oscilloscope Features
· Bandwidth: 100 MHz.
· 4 channels.
· Digital multimeter function.
· Frequency meter.
· Digital filter.
· Real-time sample rate: 2 GSa/s.
· Memory: 2 × 512 k.
· 24 auto measurements.
· 5.7-inch color LCD.
· Vertical sensitivity: 2 mV/div 5 V/div.
· Versatile trigger modes: Edge, Pulse, Video, Slope.
· Math functions: Add, Subtract, Multiply, Divide, FFT.
· Standard interface: USB Device, USB Host, Multimeter interface.
UNI-T UTD4104C Digital Oscilloscope Technical Specifications
Bandwidth |
100 MHz |
|
Channels |
4 |
|
Real time sample rate |
2 GSa/s |
|
Equivalent sample rate |
50 GSa/s |
|
Memory |
2 × 512 k |
|
Vertical sensitivity range |
2 mV/div 5 V/div |
|
Rise time |
3.5 ns |
|
Time base range |
5 ns/div 50 s/div |
|
Math |
Add, Subtract, Multiply, Divide, FFT |
|
Trigger modes |
Edge, Pulse, Video, Slope |
|
Multimeter Characteristics |
|
DC voltage |
400 mV/4 V/40 V/400 V |
|
AC voltage |
400 mV/4 V/40 V/400 V |
|
DC current |
4 mA/40 mA/400 mA/4 A |
|
AC current |
4 mA/40 mA/400 mA/4 A |
|
Resistance |
400 /4 k/40 k/400 k/4 M/40 M |
|
General Characteristics |
|
Display |
5.7" (145 mm) color LCD (320 × 240), 64 k |
|
Interface |
Standard configuration: USB Device, USB Host, Multimeter
Optional: LAN and GPIB |
|
Power source |
100240 V AC RMS, 45 Hz 440 Hz, CAT II |
|
Weight |
6.9 kg |
|
Dimensions |
330 × 215× 165 mm |
UNI-T UTD4104C Digital Oscilloscope Package Contents
1. UNI-T UTD4104C Digital Oscilloscope Unit (1 pc.)
2. Probes (4 pcs.) :1:1, 10:1
3. Multimeter Probe (2 pcs.)
4. Current-to-Voltage Conversion Module (1 pc.)
5. Power Cord (1 pc.)
6. USB Data Cable (1 pc.)
7. CD with Software (1 pc.)
