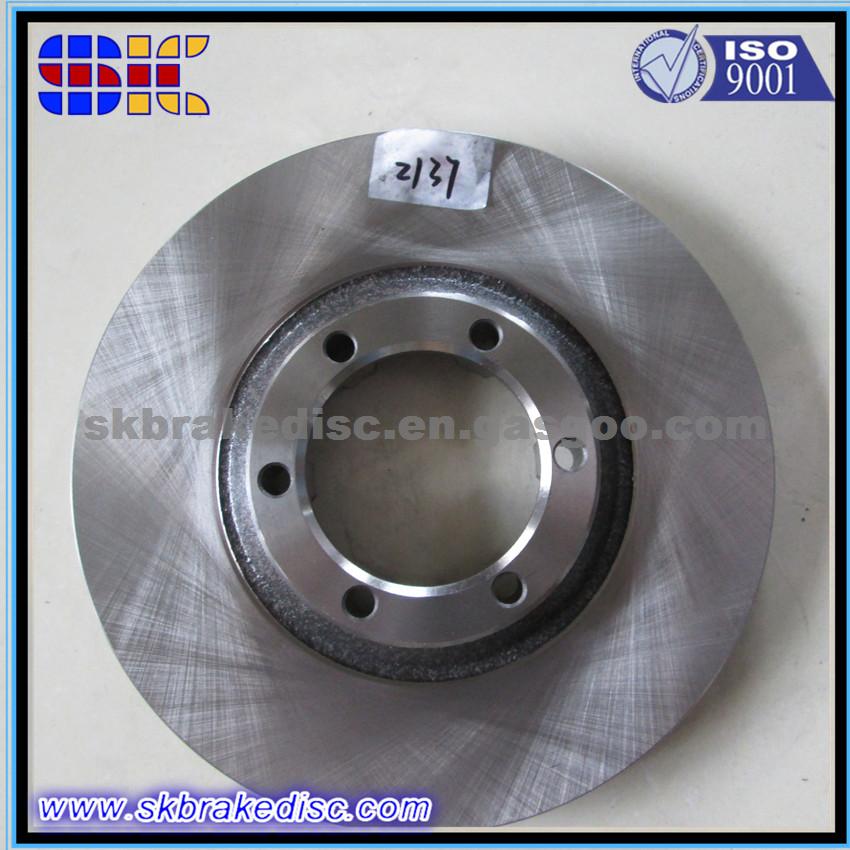

Product Attribute:
Diameter:277mm
Centering Diameter:60mm
Height:45mm
Brake Disc Type:Vented
Num. of holes:4
Weight:6.2kg
Certification:ISO 9001 2008
car accessories brake rotor supplier:factory
Applicationt:
MITSUBISHIL 300 Bus MITSUBISHIL 200 MITSUBISHIGALLOPER
Production Description:
Laizhou Shoukun Machinery Factory is a professional manufacturer of brake discs and brake drums, with 10 years of production experience and more than 3,000 varieties. Our products are very popular both in the domestic and overseas markets, and we have gained a good reputation because of product quality and excellent service.
We can supply many car bands and have more than 1,500 items in total which include almost all typical brakes worldwide, especially some new brake parts for GM, VW, Fiat, BMW, Peugeot, Opel, Renault, Mercedes, Benz, Hyundai, Daewoo and Kia. We are developing new items every day. We can develop about 500 new items every year.
We welcome all customers to visit our factory and negotiate business to gain mutual benefits.
Material Requirements
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
