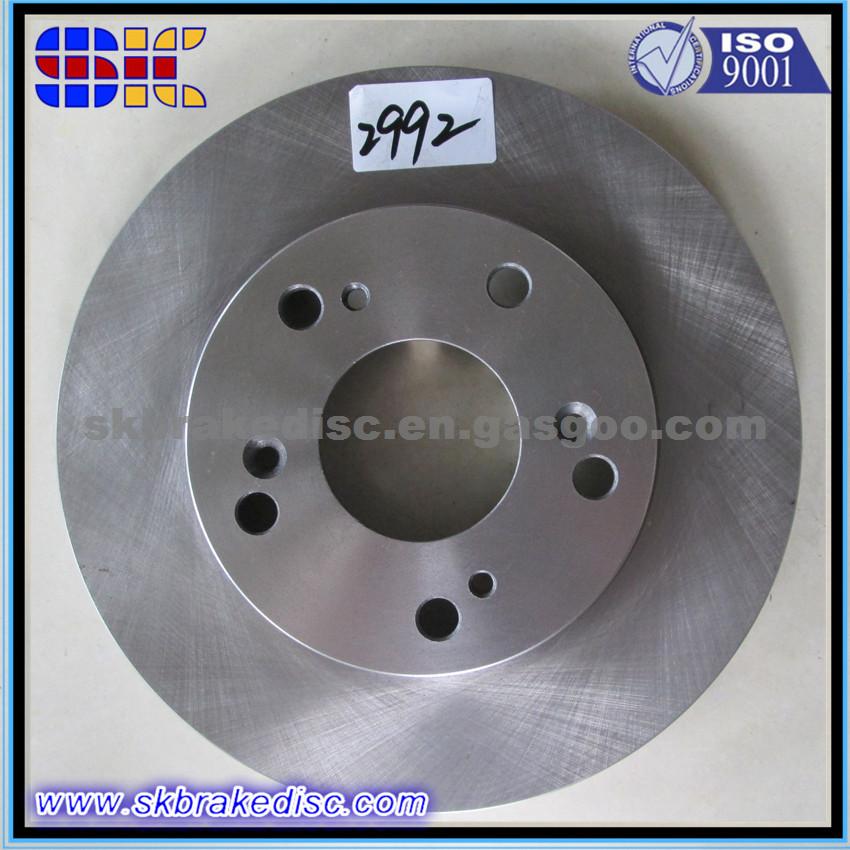

HONDACIVIC VII BRAKE Disc OEM 45251-SNA-000

Product Attribute:

Diameter:262mm

Centering Diameter:87mm

Height:47.2mm

Min. thickness:19 mm

Brake Disc Type:Internally Vented

weight:4.93kg

Num. of holes:6

Certification:ISO9001/TS16949

Applicationt:

HONDACIVIC VII Hatchback (EU, EP, EV) HONDACIVIC VIII Saloon (FD, FA) HONDACR-Z (ZF1)

Production Description:

Material Requirements

 1. Must meet Grade HT250 for gray iron castings

 2. Chemical Composition (Percent)

  * Total Carbon:            3.0 - 3.50%

    * Silicon:                    1.90 - 2.30%

 * Manganese:              0.60 - 0.90%

   * Phosphorus:             0.12% Max.

    * Sulfur:                       0.10% Max.

 3. Microstructure:

    Graphite Structure: Predominantly type A, size 3-5.
