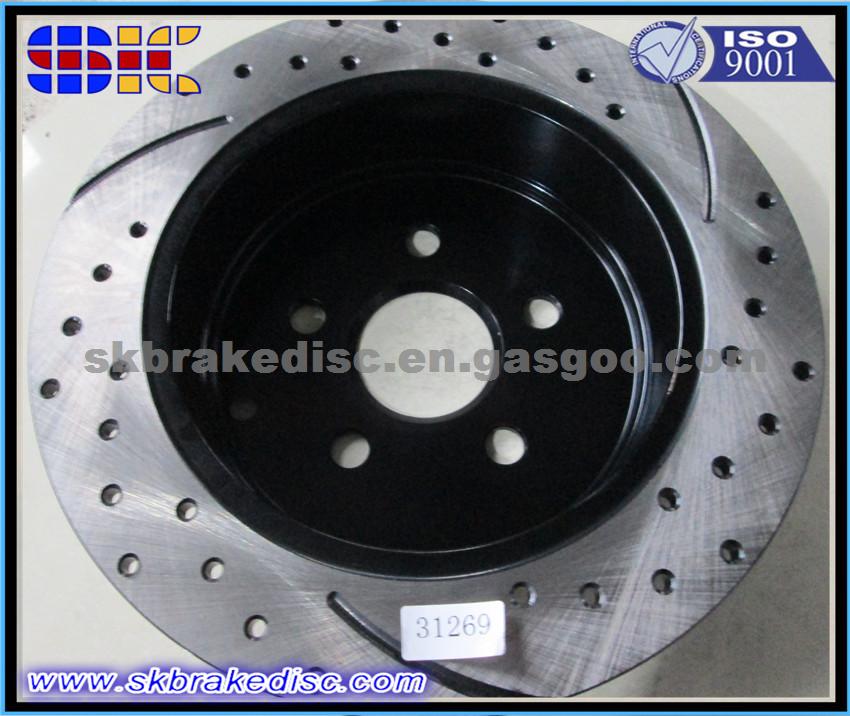

Brake Rotor TOYOTACELICA OEM 31269

Product Attribute:

Diameter:269mm

Centering Diameter:55mm

Height:56mm

Min. thickness:8mm

Brake Disc Type:Internally solid

Certification:ISO9001/TS16949

Applicationt:

TOYOTACELICA (ZZT23_) TOYOTAPRIUS Hatchback (NHW20_)

Production Description:

Material Requirements

 1. Must meet Grade HT250 for gray iron castings

 2. Chemical Composition (Percent)

  * Total Carbon:            3.0 - 3.50%

    * Silicon:                    1.90 - 2.30%

 * Manganese:              0.60 - 0.90%

   * Phosphorus:             0.12% Max.

    * Sulfur:                       0.10% Max.

 3. Microstructure:

    Graphite Structure: Predominantly type A, size 3-5.
