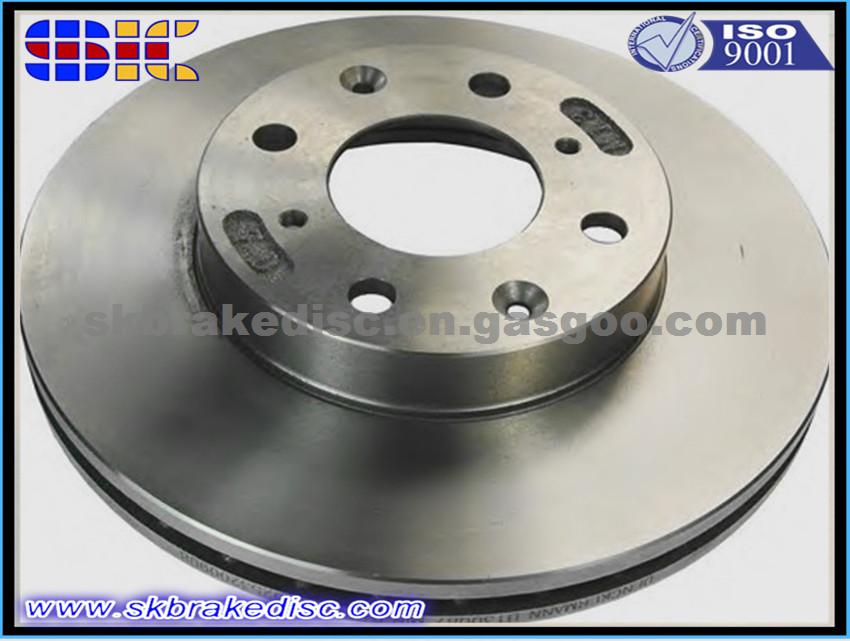

Brake System HONDACIVIC V Hatchback Disc Brake Rotor OEM 45251-SH3-A0045251-SR3-A10

Product Attribute:

Diameter:240mm

Centering Diameter:64mm

Height:45mm

Min. thickness:21 mm

Brake Disc Type:Internally Vented

weight:6.28 kg

Num. of holes:4

Certification:ISO9001/TS16949

Applicationt:

HONDACIVIC VI Fastback HONDACIVIC VI Hatchback HONDACIVIC VII Coupe

Production Description:

Material Requirements

 1. Must meet Grade HT250 for gray iron castings

 2. Chemical Composition (Percent)

  * Total Carbon:            3.0 - 3.50%

    * Silicon:                    1.90 - 2.30%

 * Manganese:              0.60 - 0.90%

   * Phosphorus:             0.12% Max.

    * Sulfur:                       0.10% Max.

 3. Microstructure:

    Graphite Structure: Predominantly type A, size 3-5.
