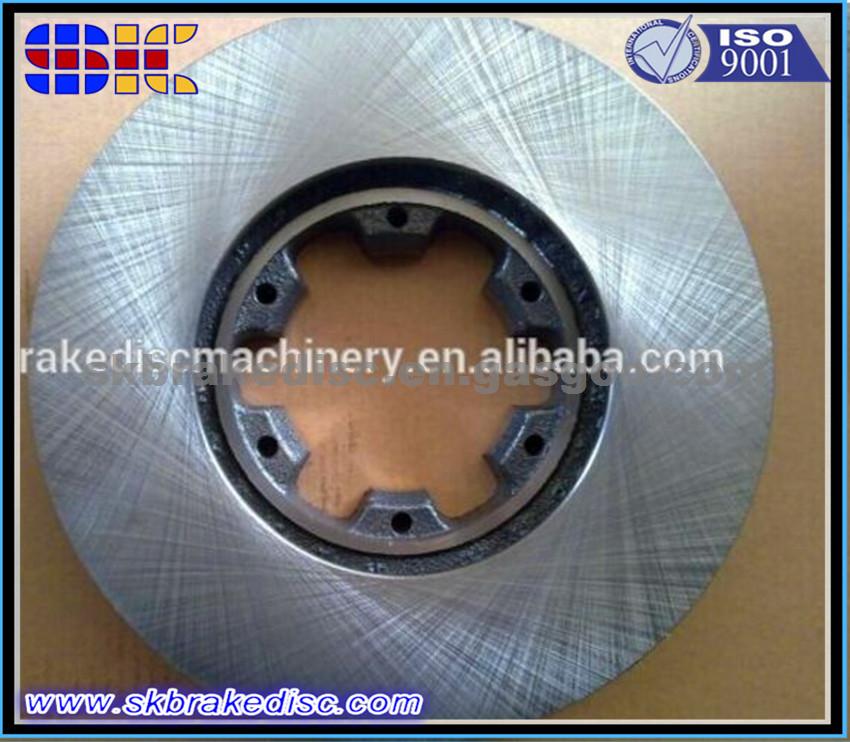

Diameter:295.6mm
Centering Diameter:64.1mm
Height:38mm
Brake Disc Type:Vented
Num. of holes:6
Fitting Position:Front Axle
Certification:ISO9001/TS16949
NISSANNAVARA Platform (Chassis)
Material Requirements :
1. Must meet Grade HT250 for gray iron castings 2. Chemical Composition (Percent) * Total Carbon: 3.0 - 3.50% * Silicon: 1.90 - 2.30% * Manganese: 0.60 - 0.90% * Phosphorus: 0.12% Max. * Sulfur: 0.10% Max. 3. Microstructure: Graphite Structure: Predominantly type A, size 3-5. Matrix: Pearlistic with max.15 ferrite. Free from chill 4. Physical Properties Tensile Strength: Min. 200 N/mm Brinell Hardness: 190 ~ 230
