Product Attribute:
Diameter:280mm
Centering Diameter:68mm
Height:49.2mm
Guarantee:50000-80000kms
Brand:SK
Daily Product:3500pieces
Import Country:American/Middle east/Asia/Europe/South Africa
Market Type:After Market
Delivery Time:20-30days
Mould:Have
Applicationt:
NISSAN
Production Description:

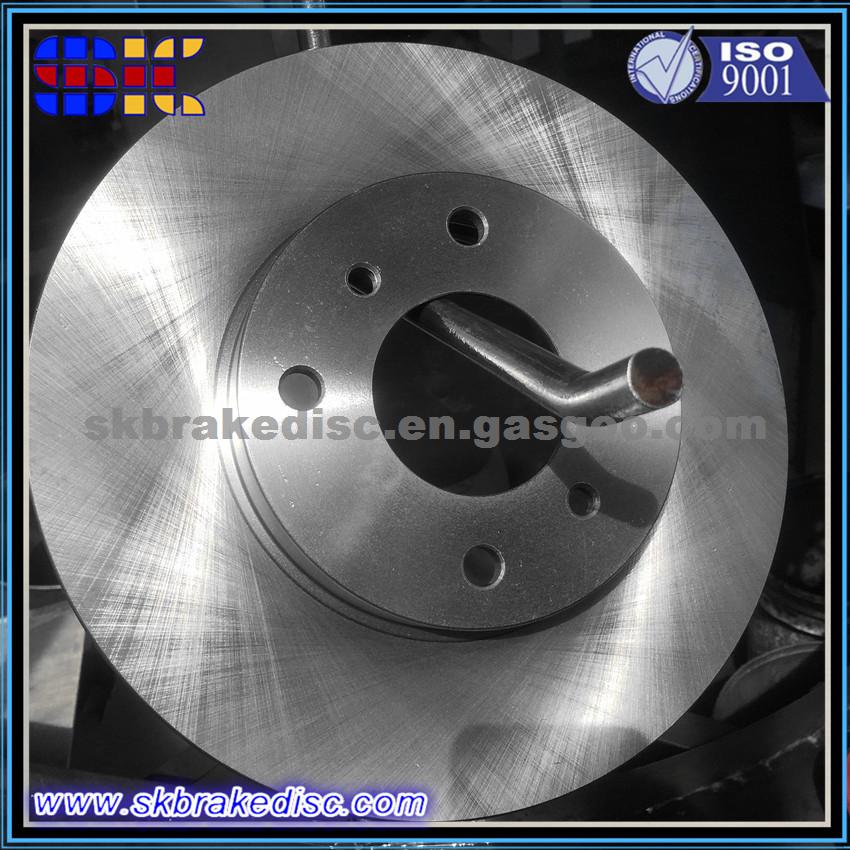

Nissan Brake Drum Brake Disc Brake Rotor 4020655F01
Find The OE Number:4020655F01
for article number:09.5254.20
Brake Disc Type:Internally Vented
Diameter [mm]:280
Brake Disc Thickness [mm]:22
Minimum Thickness [mm]:20
Height [mm]:49,2
Brake Disc Thickness [mm]:28
Laizhou Shoukun Machinery Factory is a professional manufacturer of brake discs and brake drums, with 10 years of production experience and more than 3,000 varieties.
Our products are very popular both in the domestic and overseas markets, and we have gained a good reputation because of product quality and excellent service.
We can supply many car bands and have more than 1,500 items in total which include almost all typical brakes worldwide, especially some new brake parts for GM, VW, Fiat, BMW, Peugeot, Opel, Renault, Mercedes, Benz, Hyundai, Daewoo and Kia.
We welcome all customers to visit our factory and negotiate business to gain mutual benefits.
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
A. Packaging:Complete package in four layers
1. Plastic bag: blank or with logo and description
2. Box: white box or color box with customer design
3. Pallet: Euro pallet115*115*80cm is used normally.
Customized dimension is available
4. Wooden box or shrinkage plastic
The above four layers could be combined as customer request
B.Shipping:Cargo vessel transport for bulk purchase and air transportation for samples are both avaliable
