Product Attribute:
Diameter:285mm
Centering Diameter:84mm
Height:45.5mm
Guarantee:50000-80000kms
Brand:SK
Daily Product:3500pieces
Import Country:American/Middle east/Asia/Europe/South Africa
Market Type:After Market
Delivery Time:20-30days
Mould:Have
Applicationt:
TOYOTA GRANVIA (_H2_, _H1_) 3.4 TOYOTA HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.5 D-4D 4WD
Production Description:

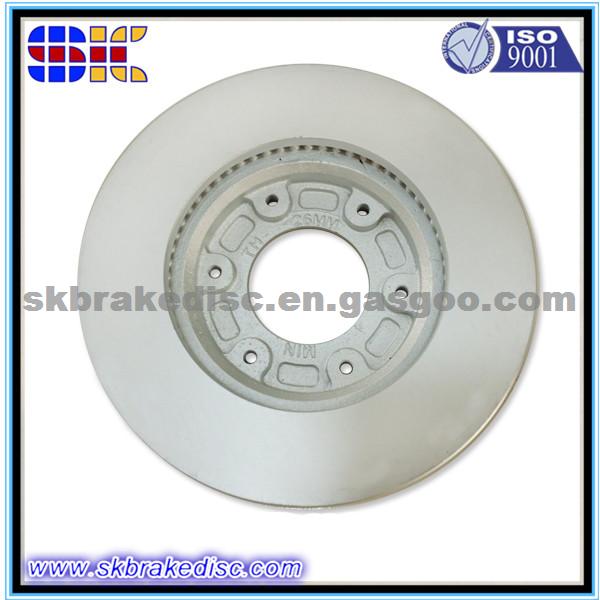

Auto Spare Parts Brake Disc Prices 43512-26160
TOYOTA GRANVIA (_H2_, _H1_) 3.4
TOYOTA HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.5 D-4D 4WD
Find The OE Number:43512-26160
Diameter [mm]:286
Brake Disc Thickness [mm]:28
Minimum Thickness [mm]:26
Height [mm]:45,5
Rim Hole Number:6
Brake Disc Type:Vented
10 years of production experience
Material:cast iron
ISO9001 Certification
more than 3,000 varieties
Guarantee:50000-80000kms
MOQ:100 Pieces
Daily product:3500 pieces
Quality:100% tested
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
Advantages
1,Tracking And Timely Reply
2,Guaranteed product quallity
3,Satisfactory product price
4,Prompt delivery time
5,Excellent customer service
