Product Attribute:
Material:Cast Iron
Position:Rear
Size:254*61mm
Weight:8.5kg
All Type Brake Disc Drum Diameter:200mm
All Type Brake Disc Drum Height:65.5mm
All Type Brake Disc Drum brand:SK
Certification:ISO 9001 2008
Guarantee:50000-80000kms
Pay Term:TT
Price:Competitive
Delivery time:20-30days
Market Type:After Market
Applicationt:
TOYOTA HIACE IV Bus (LH1_) 2.5 D-4D 4WD TOYOTA QUANTUM IV (TRH2_, KDH2_) 2.0
Production Description:

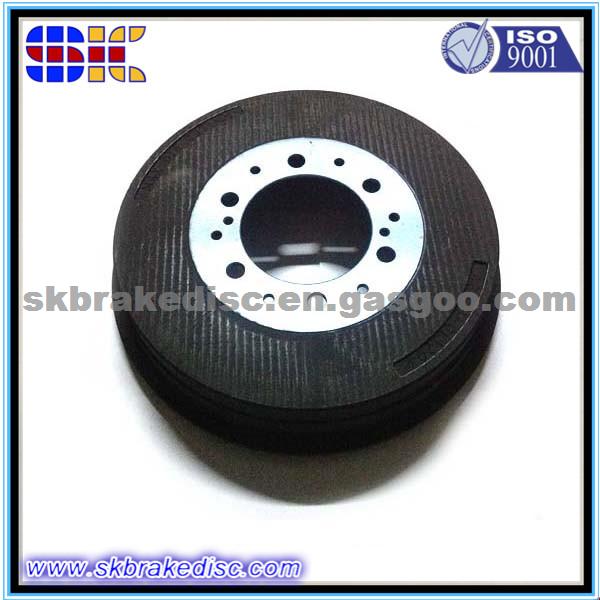

All Type No. Of Brake Disc And Drum Type Used Auto Spare Parts
TOYOTA HIACE IV Bus (LH1_) 2.5 D-4D 4WDTOYOTA QUANTUM IV (TRH2_, KDH2_) 2.0
Find The OE Number:4243126190
Drum Diameter:254
Inner Brake Drum Height [mm]:61
Br. Drum outer diameter [mm]:308
Total Br. Drum Height [mm]:71,8
Hole Arrangement / Number:06/14
Bolt Hole Circle ? [mm]:139,7
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
Advantages
1,Tracking And Timely Reply
2,Guaranteed product quallity
3,Satisfactory product price
4,Prompt delivery time
5,Excellent customer service
