Product Attribute:
Diameter:258mm
Centering Diameter:63.5mm
Height:43.8mm
American Auto Parts Guarantee:50000-80000kms
American Auto Parts Brand:SK
American Auto Parts Daily Product:3500pieces
Import Country:American/Middle east/Asia/Europe
Market Type:After Market
Delivery Time:20-30days
American Auto Parts Mould:Have
Applicationt:
Ford Fiesta Opel INSIGNIA
Production Description:

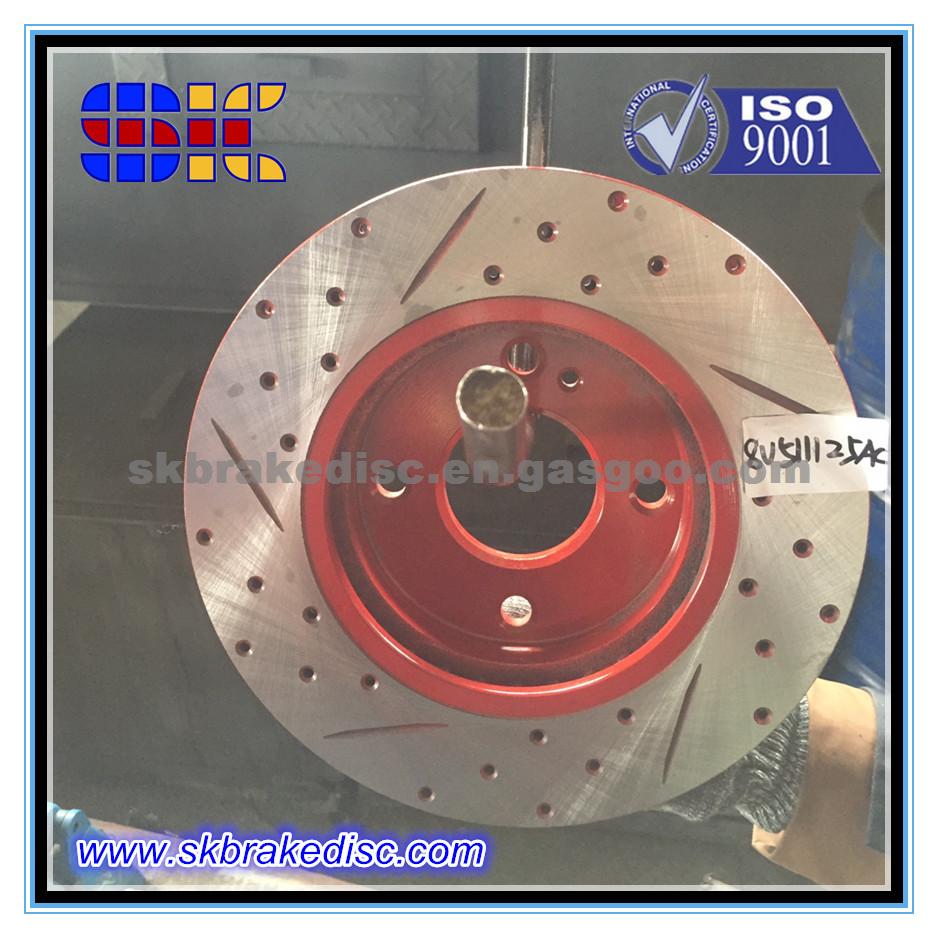

American Certification Brake Type High Quality 1679853 Brake Disc
Ford Fiesta OPEL INSIGIA
|
Diameter |
258mm |
Height |
43.8mm |
|
Number of holes |
4 |
Centering Diameter |
63.5mm |
|
Min. Thickness |
21mm |
B rake Disc Thickness |
23mm |
|
Brake Disc Type |
Vented |
Weight |
5.6kg |
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
