Product Attribute:
Diameter:316mm
Centering Diameter:72mm
Height:77mm
High Quality Vehicle Brake Disc quality:High Quality Brake Disc
High Quality Vehicle Brake Disc brand:SK
High Quality Vehicle brake guarantee:50000-80000kms
High Quality Vehicle Brake Disc mould:Have
High Quality Vehicle Brake Production:2500-3000 pieces
High Quality Vehicle Brake Delivery time:20-30Days
High Quality Vehicle Brake D Market Type:After Market
Applicationt:
JEEPWRANGLER
Production Description:

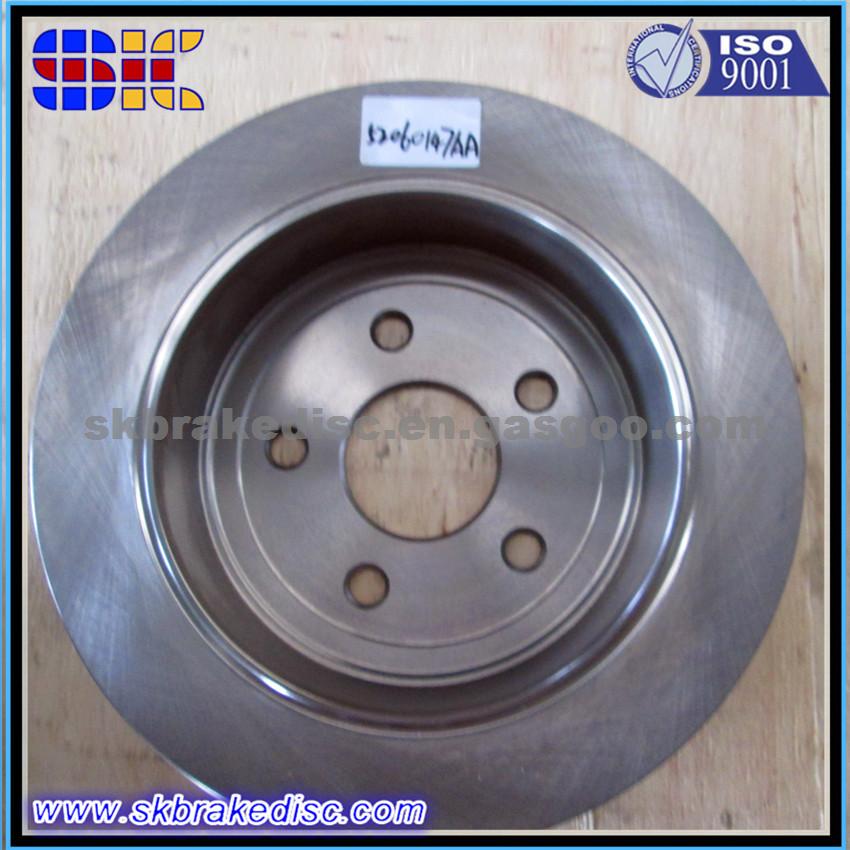

High Quality Vehicle Brake Disc Oem 152060147AA Front Brake Disc Rotor Brake Plate Disc
52060147AA 152060147AA
JEEPWRANGLER
|
Diameter |
316mm |
Height |
77mm |
|
Number of holes |
5 |
Centering Diameter |
72mm |
|
Min. Thickness |
10.4mm |
Brake Disc Thickness |
12.4mm |
|
Brake Disc Type |
Solid |
Weight |
7.72kg |
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
