Product Attribute:
Material:Cast Iron
Position:Rear
J4243135180 Rear Axle Diameter:302..3mm
Centering Diameter:91mm
J4243135180Rear Axle Height:77.6mm
Brake Drum quality:High Quality Brake Disc
BRAKE Drum brand:SK
BRAKE Drum guarantee:50000-80000kms
Brake Drum mould:Have
Brake drum Daily Production:2500-3000 pieces
High Quality Brake Drum Delivery time:20-30Days
High Quality Auto Brake Drum Market Type:After Market
Applicationt:
TOYOTA 4 RUNNER TOYOTA DYNA Platform (Chassis TOYOTA HIACE III Box TOYOTA SURF TOYOTA TACOMA II Pickup)
Production Description:

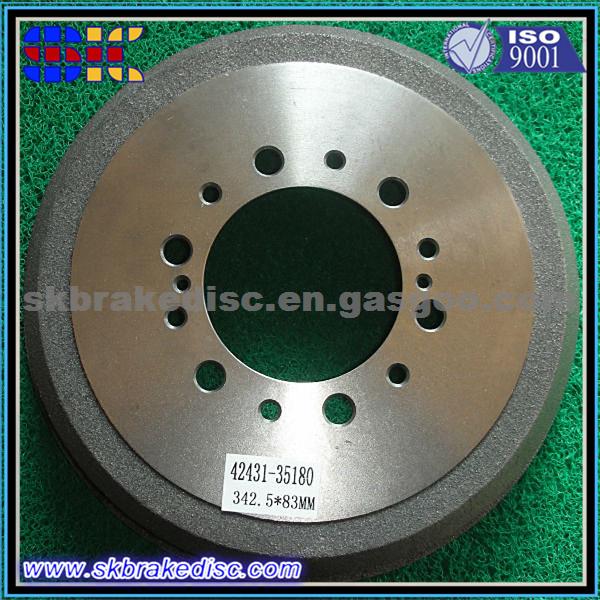

J4243135180 rear axle postion brake drum
4243135180 J4243135200 4243135110 4243104020 J4243135180 4243135200
TOYOTA 4 RUNNER TOYOTA DYNA Platform/Chassis TOYOTA HIACE III Box TOYOTA SURF TOYOTA TACOMA II Pickup
Find The OE Number:42431-35180
Inner Br. Drum Diam. [mm]:295
Inner Brake Drum Height [mm]:67
Height [mm]:84
Rim Hole Number:6
Hub Diameter 1 [mm]:106
Weight [kg]:9,35
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
