Product Attribute:
Diameter:257mm
Centering Diameter:88mm
Height:36mm
257mm Auto Brake Disc & Drum quality:High Quality Brake Disc
257mm Auto Brake Disc & Drum brand:SK
257mm Auto Brake Disc & Drum guarantee:50000-80000kms
257mm Auto Brake Disc & Drum mould:Have
257mm Auto Brake Disc & Drum Production:2500-3000 pieces
257mm Auto Brake Disc Delivery time:20-30Days
257mm Auto Brake Disc & Drum Market Type:After Market
Applicationt:
HONDA PASSPORT ISUZU AMIGO (RODEO)
Production Description:

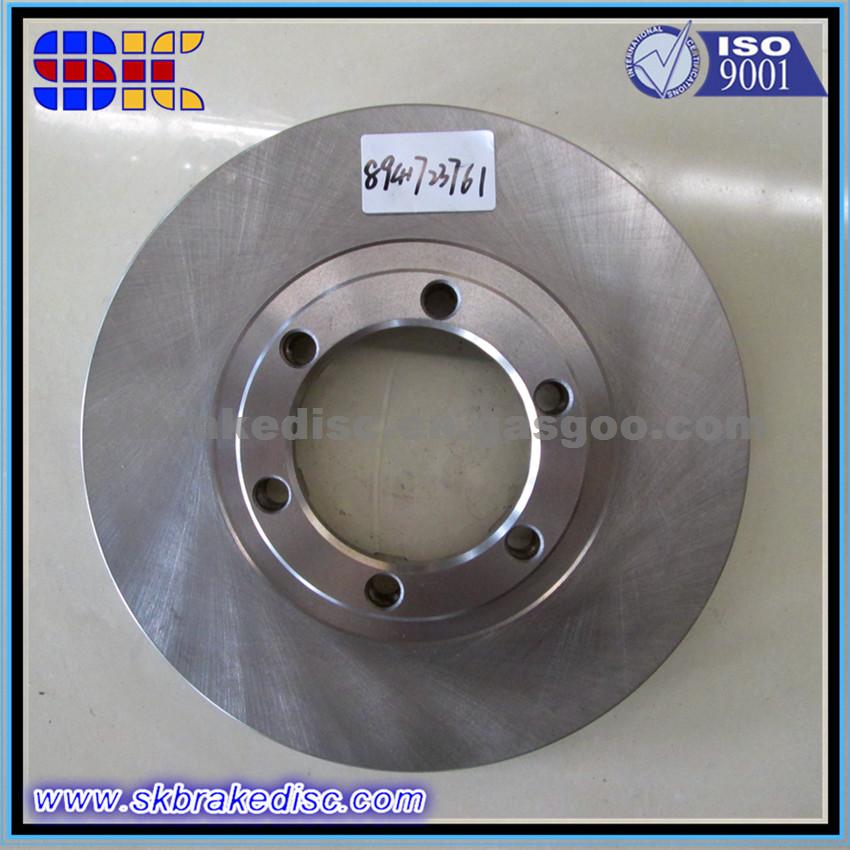

257mm auto parts brake disc & drum set in China for honda/ISUZU
8943724350/8943619271/8943619270/8941733440/94361927/
8941723761/ 18A298
HONDA PASSPORT
ISUZU AMIGO/RODEO/ PICKUP/ TROOPER
|
Diameter |
257mm |
Height |
36mm |
|
Number of holes |
6 |
Centering Diameter |
88mm |
|
Min. Thickness |
20.6mm |
Brake Disc Thickness |
22mm |
|
Brake Disc Type |
Vented |
Weight |
5.5kg |
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
