Product Attribute:
Material:Cast Iron
Position:Rear
High-Performance Brakes Drum Diameter:235mm
High-Performance BrakeCentering Diameter:55mm
High-Performance Brakes Drum Height:65.5mm
High-Performance Brakes Drum quality:High Quality Brake Disc
High-Performance Brakes Drum brand:SK
High-Performance Brakes Drum guarantee:50000-80000kms
High-Performance Brakes Drum mould:Have
Brakes Drum Daily Production:2500-3000 pieces
Brakes Drum Delivery time:20-30Days
Brakes Drum Market Type:After Market
Applicationt:
TOYOTA Corolla
Production Description:

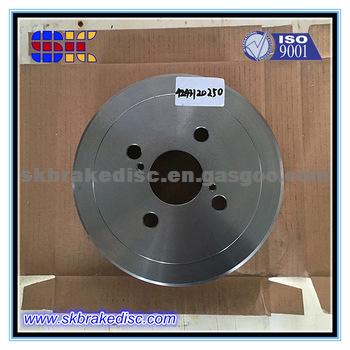

High-Performance Disc Brakes Drum For Toyota Front And Rear Axle 424312025
TOYOTA Corolla
|
Diameter |
235mm |
Height |
65.5mm |
|
Number of holes |
4 |
Centering Diameter |
55mm |
|
Pitch Circle Diameter |
100mm |
Fitting Position |
Rear Axle |
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
