Product Attribute:
Diameter:300mm
Centering Diameter:96.3mm
Height:52.6mm
Brake Disc 300mm quality:High Quality Brake Disc
Brake Disc 300mm brand:SK
Brake Disc 300mm guarantee:50000-80000kms
Brake Disc 300mm mould:Have
Brake Disc 300mm Daily Production:2500-3000 pieces
Brake Disc 300mm Delivery time:20-30Days
Brake Disc 300mm Market Type:After Market
Applicationt:
HYUNDAI H-1 ( GRAND STAREX Bus H300 Box)
Production Description:

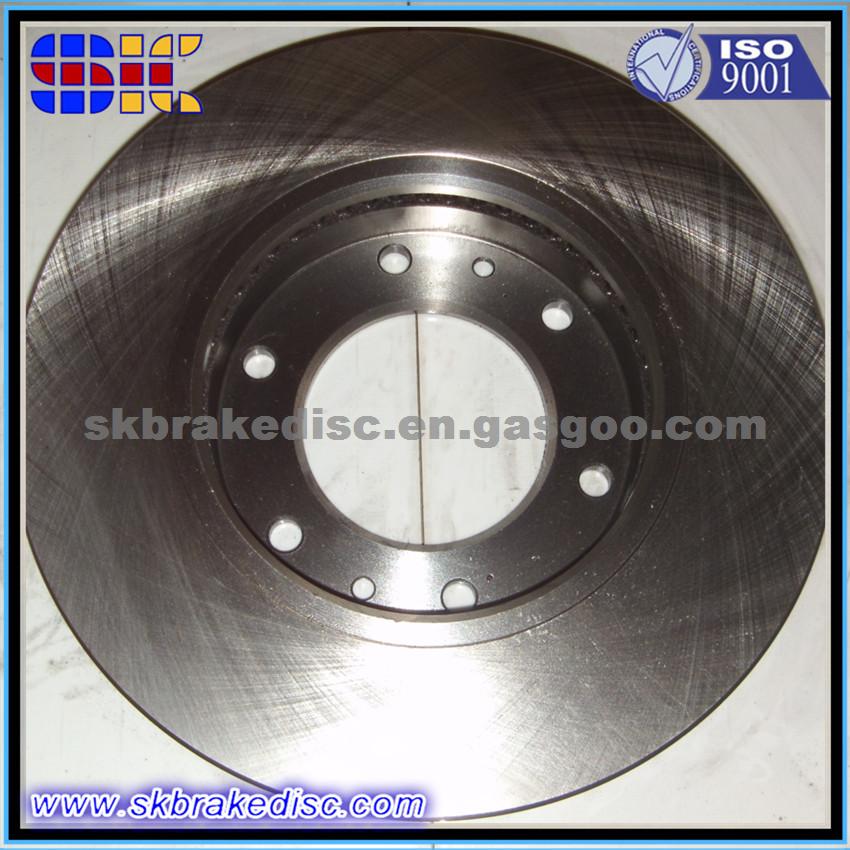

brake disc 300mm 51712-4H000/51712-4H500
HYUNDAI H-1 / GRAND STAREX Bus
H300 Box/SATALLITE
|
Diameter |
300mm |
Height |
52.6mm |
|
Number of holes |
6 |
Centering Diameter |
96.3mm |
|
Min. Thickness |
28mm |
Brake Disc Thickness |
30mm |
|
Brake Disc Type |
Vented |
Weight |
9.66kg |
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
