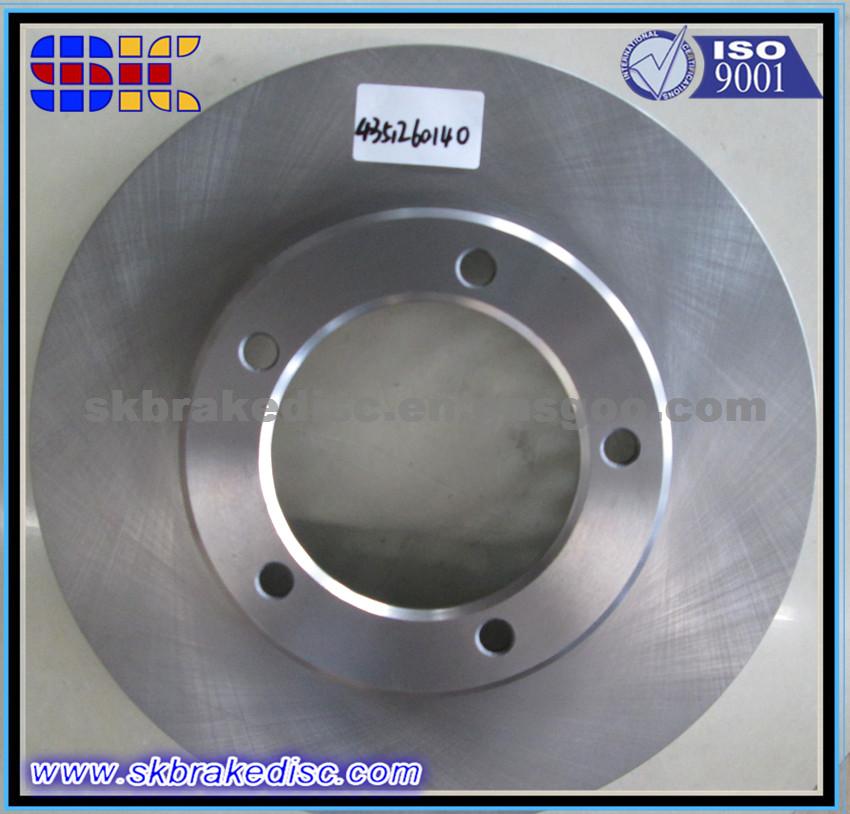

Brake Rotor TOYOTALAND CRUISER 80 OEM 4351260140

Product Attribute:

Diameter:322mm

Centering Diameter:115mm

Height:64.5mm

Min. thickness:30mm

Brake Disc Type:Internally Vented

Applicationt:

Toyota LAND CRUISER (_J8_) 4.2 D (HZJ80_) LAND CRUISER Platform (Chassis (_J7_) 4.2 TD 4x4 (HZJ7__V))

Production Description:

Material Requirements

 1. Must meet Grade HT250 for gray iron castings

 2. Chemical Composition (Percent)

  * Total Carbon:            3.0 - 3.50%

    * Silicon:                    1.90 - 2.30%

 * Manganese:              0.60 - 0.90%

   * Phosphorus:             0.12% Max.

    * Sulfur:                       0.10% Max.

 3. Microstructure:

    Graphite Structure: Predominantly type A, size 3-5.
