Product Attribute:
Diameter:257mm
Centering Diameter:84mm
Height:46.6mm
VW/Toyota Front Disc Brake Rotor brand:SK
VW/Toyota Front Disc Brake Certificate:ISO 9001 2008
VW/Toyota Front Disc Brake Guarantee:50000-80000kms
VW/Toyota Front Disc Brake Pay Term:TT
VW/Toyota Front Disc Brake Price:Competitive
VW/Toyota Front Disc Brake Market Typ:After Market
VW/Toyota Front Disc Brake Delivery Time:20-30days
Applicationt:
TOYOTA DYNA (HIACE)
Production Description:

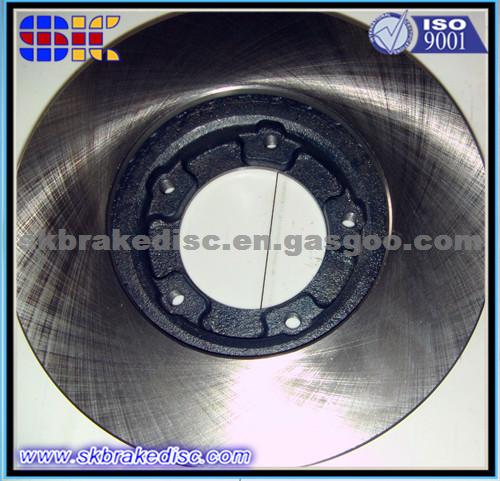

VW/Toyota Front Disc Brake Rotor Aftermarket
J4351235170/J4351260100/4351235180/43512-26040/4351226070/4351235170/
TOYOTA DYNA/HIACE/LITEACE/TACOMA
Diameter |
257mm |
Height |
46.6mm |
|
Number of holes |
5 |
Centering Diameter |
84mm |
|
Min. Thickness |
23mm |
B rake Disc Thickness |
25mm |
|
Brake Disc Type |
Vented |
Weight |
5.6kg |
Material Requirements :
1. Must meet Grade HT250 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
Advantages
1,Tracking And Timely Reply
2,Guaranteed product quality
3,Satisfactory product price
4,prompt delivery time
5,excellent customer service
