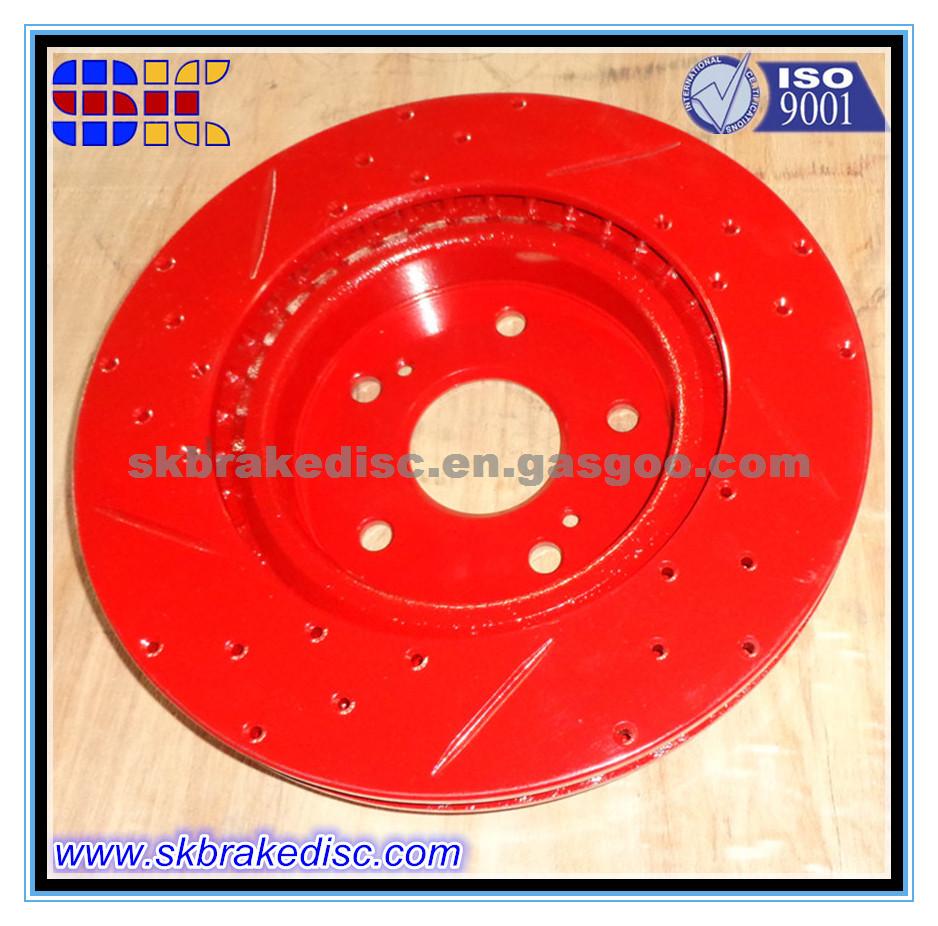

Brake Disc For Japanese Car Suzuki OEM 55211-65J00[e-Catalog]

Product Attribute:

Diameter:294.5mm

Centering Diameter:62mm

Height:49mm

Brake Disc Type:Internally Vented

Num. of holes:5

Applicationt:

Suzuki GRAND ESCUDO II

Production Description:

Material Requirements

 1. Must meet Grade HT250 for gray iron castings

 2. Chemical Composition (Percent)

  * Total Carbon:            3.0 - 3.50%

    * Silicon:                    1.90 - 2.30%

 * Manganese:              0.60 - 0.90%

   * Phosphorus:             0.12% Max.

    * Sulfur:                       0.10% Max.

 3. Microstructure:

    Graphite Structure: Predominantly type A, size 3-5.

    Matrix: Pearlistic with max.15 ferrite. Free from chill

4. Physical Properties

    Tensile Strength: Min. 200 N/mm

    Brinell Hardness: 190 ~ 230

Use Mileage: 50000Km-80000Km

Minimal quantity: 200pcs/item

Delievery date: 20-30days after deposit
