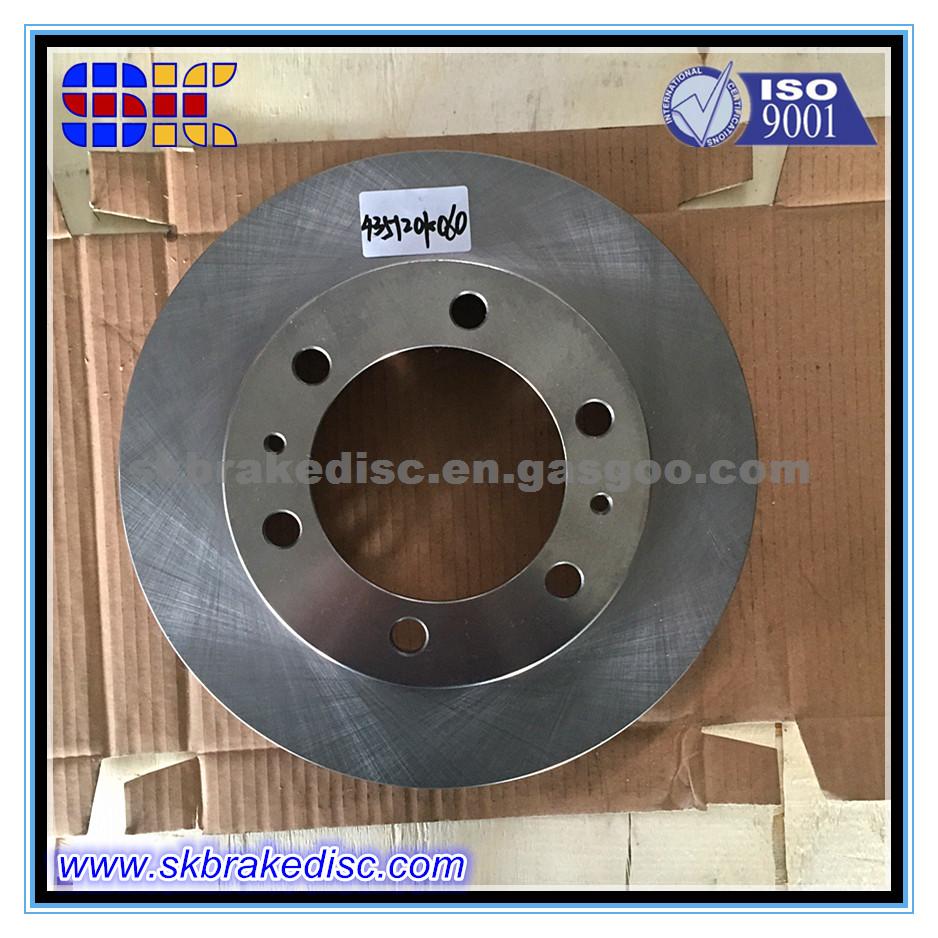

Auto Brake Disc For Toyota OEM 43512-0k060[e-Catalog]

Product Attribute:

Diameter:297mm

Centering Diameter:108mm

Height:68mm

Min. thickness:23.5 mm

Brake Disc Type:Internally Vented

Applicationt:

Toyota HILUX (VIGO)

Production Description:

Material Requirements

 1. Must meet Grade HT250 for gray iron castings

 2. Chemical Composition (Percent)

  * Total Carbon:            3.0 - 3.50%

    * Silicon:                    1.90 - 2.30%

 * Manganese:              0.60 - 0.90%

   * Phosphorus:             0.12% Max.

    * Sulfur:                       0.10% Max.

 3. Microstructure:

    Graphite Structure: Predominantly type A, size 3-5.
