Product Attribute:
Brand name:Denso
Function:Bus air conditioner compressor
Type:bus ac compressor
Warranty for bitzer compressor:one yaer
Applicationt:
1. Bus model: CHINESE Yutong, Kinglong, etc, KOREAN Hyundai, Daewoo, JAPANESE Hino, Suzuki, UD, NISSAN, Toyota, etc. EUROPEAN Scania, Caterpillar, Volvo, Benz, etc.
Production Description:

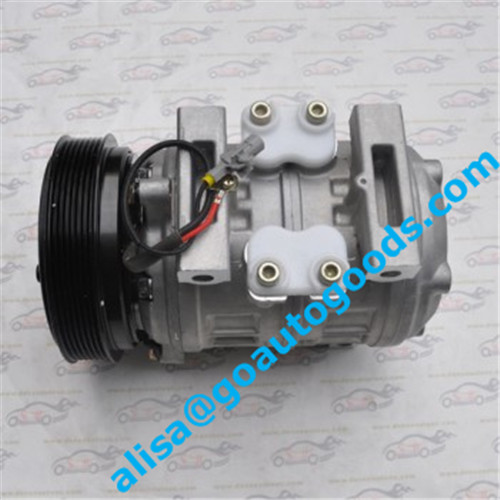

Denso 10P30C compressor 7PK pulley clutch without connector cover we supply has much more small size, quite lower working noise, longer suitable working life, better effect performance of cooling efficiency. The most important feature is much more comparatively good price. We can ensure denso compressor you will purchase from our company not only product itself, but also maintenance plan and technique service project. All installation guide and service manual will be followed with our compressors.
Content
1.Denso compressor 10P structure instruction
2.Denso 10P30C compressor 7PK pulley clutch without connector cover parameter
3.How to Identify Denso compressor model
4.Denso compressor part number explanation
5.All Denso compressors classification
6.Which auto brands Denso compressor covers
7.Technique support for Denso Compressor
8.Denso Compressor Warranty
9.Return & replacement Policy
10.Clear Denso compressor details display
1. Denso 10P30C compressor 7PK pulley clutch without connector cover structure instruction
2. Denso 10P30C compressor 7PK pulley clutch without connector cover parameter
Model |
Number of cylinders |
Displacement |
Volume of Lubriant |
Allowed speed range |
working voltage |
Power |
Length*Width*Height (mm) |
Lubrication method |
|
10P30B |
10 |
300 cm³ |
400CC |
500-6000 |
12/24V |
50W |
261*139*206 |
oil pump |
|
10P30C |
10 |
300 cm³ |
400CC |
500-6000 |
12/24V |
50W |
261*139*206 |
oil pump |
3. All Denso compressors classification
|
Type |
Type Number |
|
Reciprocal Type |
Crank Type (In-line) |
3A188, 3A224, 6C300, 6C500, 2M110, 2M126 |
|
Swash Plate Type |
Dual Swash Plate Type |
6E171, 6P127, 6P134, 6P148 |
|
10P08, 10P13, 10P15, 10P17, 10P25, 10P30 |
|
10PA15, 10PA17, 10PA20, 10PC20 |
|
10S11, 10S13, 10S15, 10S17, 10S20 |
|
Single Swash Plate Type |
7SB16, 7SBU16 |
|
5SE09, 6SE12, 6SEU12, 7SE16 |
|
5SA07E |
|
Wobble Plate Type |
6CA17 |
|
Rotary Type |
Vane Type |
Sliding Vane Type |
SV06, SV07 |
|
Through-Vane Type |
TV10, TV12, TV14 |
|
Scroll Type |
SC06, SC08, SCS06, SCS08, SCSA06 |
4. Which auto brands Denso compressor covers
It covers Toyota Coaster, Skoda, supports medium-sized buses.
5. Technique support for Denso Compressor
Our engineers have 12 years experience on auto ac repair and exchange.
Tech support like instruction file and air conditioner maintenance project plan will supply with product.
6. Denso Compressor Warranty
1 year warranty for denso compressor is guaranteed.
7. Return & replacement Policy
Necessary information and detail will be confirmed by our sales apartment in case denso compressor not meet your need.
We accept your return or replacement if mistakes happen, all shipping charges will be paid by our company.
