Product Attribute:
Applicationt:
and can test hundreds of kinds of injector and high-pressure pump including BOSCH, SIEMENS, DELPHI, DENSO, Caterpillar etc. with complete experimental data
Production Description:

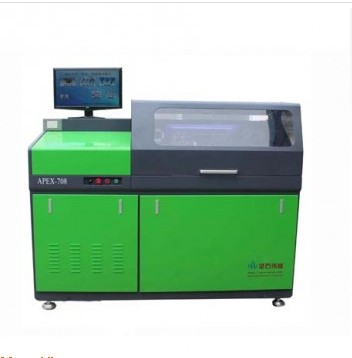

HK708 adopts full-automatic control, and can test hundreds of kinds of injector and high-pressure pump including BOSCH, SIEMENS, DELPHI, DENSO, Caterpillar etc. with complete experimental data
Product Introduction
HK708 adopts full-automatic control, and can perform maintenance test of Euro , Euro, Euroinjector and high-pressure pump conveniently. It can test hundreds of kinds of injector and high-pressure pump including BOSCH, SIEMENS, DELPHI, DENSO, Caterpillar etc. with complete experimental data. This test bench, integrated with original imported high-precision flow sensor, has functions: automatic measurement of oil quantity and automatic generation of fuel pump nozzle maintenance report etc..
Product Features
As long as you fill in information, install a new injector and let it automatically works, it will create data well for you in half an hour. You can save the new injector test data for permanent use.
Configuration
HK708 A
Main motor
Hengshui "Energetic OX", Shanghai "People" (11kw/15kw)
Converter
"QMA", "LG", "SIEMENS", "LK"
Standard common rail fuel pump
Bosch Original CP3 or CP1H
Standard fuel rail
Bosch Original with DRV fuel rail
Low pressure hose
Korean APH heat-resisting and high tensile oil tube
Injector sensor
Original KOBOLD sensor
Pump sensor
High-precision gear flow sensor
Display
Brand new HD 23 inch LED display
Industrial Motherboards
Industrial Intel Platform
Filter
Euro III Special Filter
Temperature Control System
Efficient and intelligent heating and cooling group
HK708 B
Main motor
Hengshui "Energetic OX", Shanghai "People" (11kw/15kw)
Converter
"QMA", "LG", "SIEMENS", "LK"
Standard common rail fuel pump
Bosch Original CP3 or CP1H
Standard fuel rail
Bosch Original with DRV fuel rail
Low pressure hose
Korean APH heat-resisting and high tensile oil tube
Injector sensor
High-precision gear flow sensor
Pump sensor
High-precision gear flow sensor
Display
Brand new HD 23 inch LED display
Industrial Motherboards
Industrial Intel Platform
Filter
Euro III Special Filter
Temperature Control System
Efficient and intelligent heating and cooling group
Injector Test
Equipped with Bosch original imported CP3 pump and high-pressure fuel rail with DRV, can drive 6- cylinder solenoid valve and Piezoelectric injector, to carry out injector test under different working conditions
Can select number of injector cylinder to carry out automatic measurement cylinder by cylinder, test bench RPM, Automatic steering control, and automatic rail pressure regulation, maximum up to 2000Bar, can stabilize within 10Bar, and can measure oil amount and generates report automatically.
After comparing experimental data of hundreds of kinds of injectors, it can automatically judge the injector to be tested is good or not via reports.
All injector drive channels have short circuit protection function.
Fuel Pump Test
Can drive different kinds of high-pressure pumps like Bosch CP1/CP2/CP3, Delphi CRSP, Denso HP3/HP4, Siemens DCP and Denso HP0 pump.
Test bench RPM, Automatic steering control, Automatic rail pressure regulation, the maximum can reach 2000Bar,can stabilize within 10Bar, and can measure oil amount and generates report automatically.
Experimental data comparison of hundreds of kinds of injectors. Through reports, it can automatically judge the injector to be tested is good or not.
All high pressure pump drive channels have short circuit protection function.
Technical Parameters
AC380V
Working Voltage
Output Power
11~15 KW
Rail Pressure Range
0~2000 Bar
Rail Pressure Control Accuracy
±0.5 MPa
Fuel Pump Rotation Speed
0 ~ 4000 RPM
Diesel Filter Accuracy
< 5 U
Injector Sensor Range
0.1 mL - 600 mL
Injector Sensor Accuracy
0.1%
Pump Sensor Range
10 mL - 3000 mL
Pump Sensor Accuracy
0.5 %
Dimension
198 * 84 * 150 ( cm )
Net Weight
680 KG
Affiliated features
Have data backup, system software update and data upgrade functions.
With tens of accessories convenient installation test for different types of injectors and high-pressure pumps is ensured.
Unique in China
DRV clogging automatic warning function, will save a great amount of usage expenses for you.
Main Characteristics
Glow Sensor
Ø The injector sensor, which is ellipsoid gear sensor, is of high precision and reveals fuel amount instantly. Thus it resolves the problems such as low speed, big error, incapable to measuring small volume and fragileness caused by using traditional weighing sensor;
Ø Fuel pump sensor covers great measuring range. With a steel inner core, it is stable, durable and difficult to clog while running big flow of fuel.
Ø Several High-precision Diesel Filters
Given that test bench runs fuel circularly, and all the pump, DRV, fuel
