Product Attribute:
Type:Fuel Injector Tester
Output Power:13kw
Output Voltage:24v
Applicationt:
It can test hundreds of kinds of injector and high-pressure pump including BOSCH, SIEMENS, DELPHI, DENSO, Caterpillar etc
Production Description:
The product equips various aptamers for pump nozzle/unit pump control cabinet. It can implement maintenance test unit pumps and pump nozzles very conveniently; and it is able to test hundreds of unit pumps and pump nozzles including Bosch, Cummins, Volvo, caterpillar, Hengyang, and Witt.
Product features
1. Equipped with cam box and dozens of aptamers to adapt to the fixed installation of different unit pumps and pump nozzles.
2. Able to test hundreds of unit pumps and pump nozzles including Bosch, Cummins, Volvo, Caterpillar, Hengyang, and Witt.
3. Control module integrated with industrial control module, and equipped with a standard computer monitor, a mouse and a keyboard, convenient for operation.
4. With the function to backup and upgrade main program and database.
5. All the technologies of the product are self-developed. And special features can be tailored for customers, including shape of test bench, program interface, ads and so on.
Experiment of unit pump
A. Equipped with cam box and dozens of aptamers to adapt to the fixed installation of different unit pumps;
B. Able to adjust the steering and speed of text bench under each operating mode with ordinary EURO 2 test bench; adjust automatically the timing advance angle and operating angle signal driven unit pump;
C. Data comparison of experimental standards of unit pumps; able to judge correctly the unit pump to be tested and provide maintenance guide.
D. Driven channel has the protection function for short circuit.
Experiment of injectors
1. Equipped with cam box and dozens of aptamers to adapt to the fixed installation of different pump nozzles;
2. Able to adjust the steering and speed of text bench under each operating mode with ordinary EURO 2 test bench; adjust automatically the timing advance angle and operating angle signal driven pump nozzles;
3. Data comparison of experimental standard for hundreds of pump nozzles; able to judge correctly the pump nozzle to be tested and provide maintenance guide.
4. Driven channel has the protection function for short circuit.
Affiliated characteristics
Device has a data backup, the system software update and data update function; Dozens of accessories, ensure for the single pump and pump nozzle types, convenient installation and testing.
German Original Glow Sensor
The injector sensor, which is ellipsoid gear sensor, is of high precision and reveals fuel amount instantly. Thus it resolves the problems such as low speed, big error, incapable to measuring small volume and fragileness caused by using traditional weighing sensor;
Fuel pump sensor covers great measuring range. With a steel inner core, it is stable, durable and difficult to clog while running big flow of fuel. |
|
|
|
Several High-precision Diesel Filters
Given that test bench runs fuel circularly, and all the pump, DRV, fuel controlling valve and sensor are easy to clog, we install high-precision diesel filters to make sure it work stablely and long time, and more safer to use. |
|
|
Automatic Data Generation
As long as you fill in information, install a new injector and let it automatically works, it will create data well for you in half an hour. You can save the new injector test data for permanent use. |
Self-R&D, Constant Updating & Promotion of Products
Being with powerful R&D team, we can assure consitant updating and promotion of our products, and developing more practical functions.
Can make personalized functions, including test bench appearance, color, precedure interface, advertisement, etc. |
|
|
|
Providing spare parts, maintenance guidance and whole set training services.
All investers of our company have run pump maintenance store over ten years. Experienced in this industry, we provide professional training & guidance and spare parts support to help you become real expert in pump & injector maintenance. |

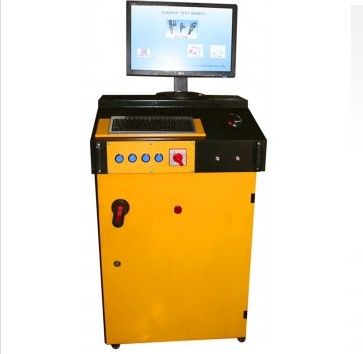

Pictures of Common rail injector tester ZQYM 518
1.Test for pumps and injectors
2.BOSCH SIEMENS DELPHI DENSO Caterpillar
3.Euro III EuroIV EuroV
