Product Attribute:
Applicationt:
10P30B Compressor Clutch for Toyota Coaster
Production Description:
Filter-driers are a key component in any refrigeration or air conditioning system.
Filter drier is used in an A/C system to take moisture out of the system.

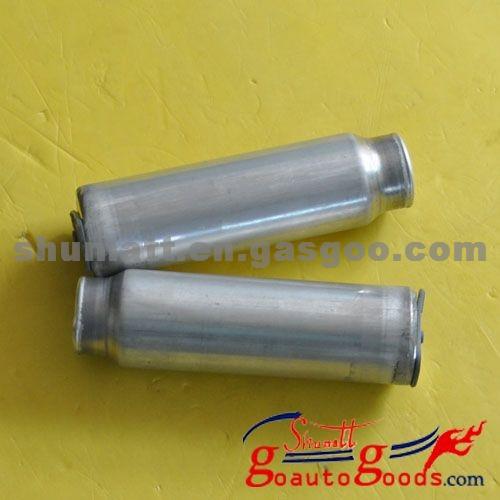

Air connditioning parts 24V Coaster Drier Filter is widely used
Filter-driers are a key component in any refrigeration or air conditioning system. Filter drier is used in an A/C system to take moisture out of the system. It is installed on the liquid line. Auto Air Conditioner Drier Filter is a very important device among systems. The Drier Filter could properly adjust supplemental refrigerant to avoid the risk of leakage of the refrigerant that result in insufficiency. In a way, the device improves the working conditions of the auto air conditioning machines. It's becoming more and more popular.
Custom processing |
YES |
Current |
No |
|
Brand |
TOYOTA |
Voltage |
none |
|
Origin |
China |
Dimensions |
none |
|
Drive |
Detached |
Part Number |
Green 240 |
|
Performance |
single function type |
Power |
No |
|
Control |
automatic adjustment |
Applicable models |
Toyota Coaster |
Bottle height:200mm
Bottom diameter: 60mm
Bottle diameter:50mm
Part No.: 88471
Filter direr function:
A filter-drier in a refrigeration or air conditioning system has two essential functions: one, to adsorb system contaminants, such as water, which can create acids, and two, to provide physical filtration. Evaluation of each factor is necessary to ensure proper and economical drier design.
Absorbing moisture, preventing acids
The ability to remove water from a refrigeration system is the most important function of a drier.
Selecting a desiccant
There are many factors involved when selecting which desiccant material is best for an application. Water capacity, refrigerant and lubricant compatibility, acid capacity, and physical strength are important characteristics of desiccants and should be considered.
The first of these, water capacity, is the amount of water the desiccant can hold while maintaining low moisture levels within the refrigeration system.
A molecular sieve retains the highest amount of water, while keeping the concentration of water in the refrigerant low. This is due to the strong bond between the molecular sieve and the water.
Physical strength of the desiccant is another factor to be considered. Desiccants should be strong enough mechanically to resist breaking up when subjected to system vibrations and surges (attrition). Attrition occurs when the desiccant beads rub against one another when it is shaken or vibrated, yielding fine particles. Therefore, the method of retaining the desiccant in the filter-drier (based on drier size and location) plays a major role on the integrity of the desiccant.
Providing filtration
Filtration is the other main function of a filter-drier and is accomplished by different methods. Some driers use only one method; others may use a combination of methods.
FAQ:
Q:What is the filter drier?
A:Filter drier is used in an A/C system to take moisture out of the system. It is installed on the liquid line.
Q:What side of the filter drier is the filter and the drier?
A:low pressure input side, but it really does not matter, because you have to pour in approx. 2 oz. of a/c pag or ester oil in there. That is if your refurring to an air conditioner unit.
Q:What is the purpose of a filter drier?
A:Filter any foreign particles via a fine mesh screen. These filters have a desiccant which will remove any small amount of moisture, trapped in the system.
