Auto AC Digital Thermometer ADD802

Product Attribute:

Type:Engine Analyzer

Applicationt:

all brands

Production Description:

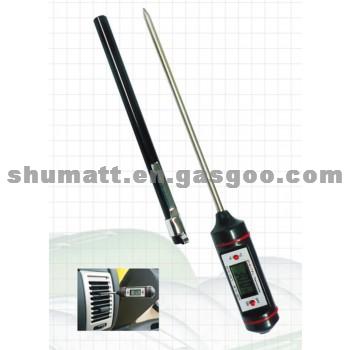

Description of A/C Digital Thermometer

A/C Digital Thermometer can fast and accurate testing of the air conditioning vent temperature, it can easiely test the air conditioning vent temperature of car, truck and bus, it also be used to test other liquid temperature.

A/C Digital Thermometer Features:
Press "/" button once to change the temperature unit.
DATA HOLD FUNCTION:
Press "HOLD" button once to retain reading,or icon flashing
then press HOLD button once again to release the HOLD function

A/C Digital Thermometer Specifications:

Automatic power off after 10 minutes
Measurement range: -50 to +200/-58 to +392
Accuracy:between -50 to 200(-58 to +392),otherwise, more than ±2(±4)
Resolution:0.1°between -19.9°to 199.9°,otherwise 1°
Sampling Rate:1 second
Battery: 1pc×1.5 volt type LR44 or equivalent Probe size:125mm(L)
Ambient temperature:-10 to 50/ +14 to 122

A/C Digital Thermometer Applications:

Measure Procedure
Press ON/OFF button once to switch ON the thermometer
it will perform a self-test with a flash of full segment display
and jump to normal display
Take out the plastic probe cover, then penetrate the stainless steelprobe into test substance
about 25mm(1)to get the reading when it become stable
Press ON/OFF button once to switch OFF the thermometer

Battry Replacement
Open the battery cover by swirling anti-clockwise, replace the battery
then close the battery cover tightly by swirling clockwise

Note

Not to be used inside an oven or microwave oven
Not to be used the probe cover to stir at high temperature substance
