Product Attribute:
Type:Engine Analyzer
Applicationt:
all brands
Production Description:

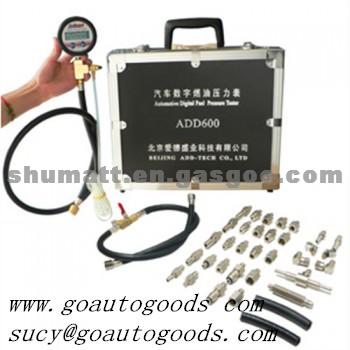

Digital Fuel Pressure Tester Description:
Digital Fuel Pressure Tester accurately test the fuel system initial pressure, working pressure, keep up the pressure and the maximum pressure, the tester with a suitable Europe, Asia, the Americas, as well as domestic models of the test connector, equipped with professional fuel pressure test manuals and standard values, it also can withstand three times the working pressure of twice the working pressure transient pulses.
Continuous reading v.s. Peak & hold selectable
Always on v.s. Auto-off selectable
Auto-off time selectable
Four units selectable
Pressure gauge: PSI, BAR, kgf/cm2, kPa
Vacuum gauge: in.Hg, mBar, Torr, hPa
Maximum display value setting
Minimum display value setting
Digital Fuel Pressure Tester Features:
Burst pressure: 300% F.S.
Proof pressure: 200% F.S.
Accuracy ± 0.3% ± 1 digit @25oC
Resolution is better than 0.1%
Four digits LCD display
Dual-polarity value display
User zeroing
Digital Fuel Pressure Tester Auto-off function
Typical battery life is over 1500 times(each time180 seconds)
Low battery indication
Rubber shroud protection
Standards used in this calibration are traceable to the National
Institute of Standards Technology (NIST).
Digital calibration and setting data stored in EEPROM
Continuous reading v.s. Peak & hold selectable
Always on v.s. Auto-off selectable
Auto-off time selectable
Four units selectable
Pressure gauge: PSI, BAR, kgf/cm2, kPa
Vacuum gauge: in.Hg, mBar, Torr, hPa
Maximum display value setting
Minimum display value setting
Software calibration
ADD600 Specifications:
Sensor type: Silicon sensor
Pressure range: 0si-100Psi
Display pressure range: 0~120% F.S.
Proof pressure: 200% F.S.
Media: Non-corrosive liquids and gases
Display: 4 Digits TN type LCD
Supply voltage: 9 VDC battery
Battery life: 1500 times typical ON time
Low battery indication: = replace battery
Standby current: 5m A maximum
User interface: ON, ZERO
Operating temperature: 0 ~ 45 (32 ~ 115 )
Storage temperature: -10 ~ 75 (15 ~ 165 )
Accuracy: ± 0.3% ± 1 digit @25
Thermal error: ± 1% of Full Scale
ADD600 Applications:
Bosch: K, KE, KE3, L, LE2, LE3, LH. Jetronic.
Bosch Motronic: M1.3, M1.7,M2.5, M3.1, ML4.1, MA3.0, A2.2 SPi.
Bendix-Fenix: EFI.
Chrysler: SM.
Daihatsu: EFI.
Fiat: SPI, Meber 1AW.
EEC1V, EFI, Weber CFI
M: Multec SPI, EFI, Simtec EFI.
Hyundai: EFI.
Honda: PGM-FI.
Isuzu: 1-Tec.
Kia: EFI.
L Hotwire, P Digital.
Magnet Marelli: EFI, G5/6 Mono. Weber-Marelli: 1AW, CFI.
Mazda: EGI.
Mitsubishi: ECI,MPI.
Nissan: EFI, ECCS.
Renault: R Electronic.
Reni: MPI.
Rover: SPI, PGM-FI, M.E.M.S.
Subaru: MPFI, SPFI.
Suzuki: E.
Toyota: EFI, TCCS.
VW: Digijet, Digifant, WAG MPI
