Product Attribute:
Type:Engine Analyzer
Frequency range:30 Hz-15kHz
Output volume:Adjustable in 80 levels
Led indicator:Power on /Sound volume/ Battery low
Headset:48 Ohm (with ear defender)
Battery:2 x AAA/LR03 (included)
Battery lifetime:10 hours (continuous use)
Dimensions handset:1258130mm
Applicationt:
all brands
Production Description:

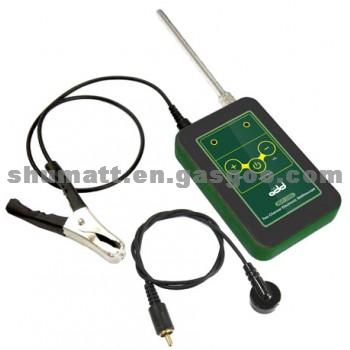

Description Of AUTO SANNER TOOL ADD350D:
The Two Channel Electronic Stethoscope ADD350D is a high quality, sensitive instrument enabling the determination of trouble some machine parts by the detection of machine noises Designed to allow the user to listen to amplified sounds through two channel and compare different channel sound and quickly detect source or location of noises Two channel are control simultaneous or independent transmission and reception sound
In automotive application you could quickly detect source or location of noises emanated from bearing, gear, injector valve, valve body ,crankshaft, cylinder, gearbox, car body etc. Parts after starting engine .It help the serviceman to pinpoint the actual noise part and severity even in severe ambient noise.
Features of AUTO SANNER TOOL ADD350D:
1.Designed Two Channel facilitate analysis and comparison different channel sound
2.Two channel are controlled simultaneous or independent transmission and reception sound
3.One channel receive normal sound and the other channel receive doubt noise
4.Excellent sound quality helps to reliably identify the possible cause of the noise
5.User friendly and easy to operate, no special training required
6.Excellent quality headset for optimum sound quality even in very high-noise environments
7.Supplied with long probes, Caliper sensors: Magnetic sensors enabling reach almost anywhere Sound amplification with volume control.
Specifications of AUTO SANNER TOOL ADD350D:
Frequency range |
30 Hz-15kHz |
|
Operating temperature |
- 10 to + 45 °C (14-113 °F) |
|
Output volume |
Adjustable in 80 levels |
|
Led indicator |
Power on /Sound volume/ Battery low |
|
Maximum recorder output |
250 mV |
|
Headset |
48 Ohm (with ear defender) |
|
Battery |
2 x AAA/LR03 (included) |
|
Battery lifetime |
10 hours (continuous use) |
|
Dimensions handset |
125×81×30mm |
|
Probe length |
29cm |
|
Clamp-on inductive sensors |
65CM |
|
Magnetic sensors |
65CM |
Includes:
Main Tester1pcs
Headset1pcs
Long probe
Clamp-on inductive sensors1pcs
Magnetic sensors1pcs
Battery 2 PCS
Manual 1pcs
Molded Case, 1pcs
