Product Attribute:
Brand Name:Diagnostic Scanner
Type:Diagnostic Scanner Launch Creader V code scan tool
Function:Auto Diagnostic tool
Applicationt:
Europe, Asia, Japanese vehicles etc
Production Description:
ELM327 V1.5b Newest Car Scanner Support vehicles models with OBD-Protocol that produced after 1996 (including the VPW, PWM, ISO, KWP 2000, CAN protocol). ELM327 can be connected to a laptop PC, desktop PC or mobile phone, used to read the fault code and recognition the meaning of fault code, clear the fault codes, fuel consumption monitoring, auto display sensor data streams such as speed, water temperature, and so on. Very powerful functions!
NOTE: Computer needs to connect Bluetooth adapter , the effective distance is 10 meters. Bluetooth pairing code: 6789 (1234)
1. Supports all OBD-protocol, Bluetooth output;
2. Can be connected to a laptop PC, desktop PC or mobile phone, PalmPDA.
Language: English
Support system: XP(need Bluetooth equipment), Android
ELM327 Functions
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18.Fuel Pressure
19.Many other
Supports All OBD-II Protocols
Works with all OBD-II compliant vehicles
Wireless (Bluetooth)
Software included for Palm, PDA
Software included for Windows PC
Software included for Windows Smartphone
Supports ISO 9141, KWP2000
Supports SAE J1850
Supports CAN bus
Automatic
1. SAE J1850 PWM (41.6Kbaud.
2. SAE J1850 VPW (10.4Kbaud.
3. ISO9141-2(5 baud init,10.4Kbaud.
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud.
5. ISO14230-4 KWP (fast init, 10.4 Kbaud.
6. ISO15765-4 CAN (11bit ID, 500 Kbaud.
7. ISO15765-4 CAN (29bit ID, 500 Kbaud.
8. ISO15765-4 CAN (11bit ID, 250 Kbaud.
9. ISO15765-4 CAN (29bit ID, 250 Kbaud.
-SAE J1939 CAN (29bit ID, 250*Kbaud.
-USER1 CAN (11*bit ID, 125*Kbaud.
-USER2 CAN (11*bit ID, 50*kbaud.
Default settings (user adjustable)
1. Works with all OBD-II compliant vehicles
2. Wireless (Bluetooth. 5~10meters
3. Software included for Palm, PDA, Mobile
4. Software included for Windows PC
5. Software included for Windows Smartphone
Software on Android system screen shot
Packing List:
1pc x ELM327 unit(bluetooth version)
1pc x CD drive
Attention:The Bluetooth ELM327 has no cable, it works via bluetooth wirelessly.
FAQ:
Q:For elm 327,customer can not connect on any of the com port settings,how do they do?
A: If you encounter this case,pls contact us.we will send a file to you for instructions to solve this problem.
Q:what is the difference among elm327(plastic) elm327(metal box) and bluetooth elm327?can they update?

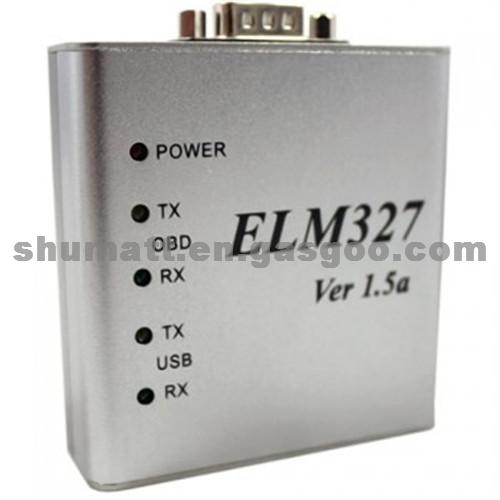

A: For these three kinds of elm 327,they have the same functions.the only diference is the interface.the plastice elm327 just have USB interface;the metal box elm327 has two interfaces:USB interface and COM interface;the bluetooth one doesnt have any interface,it works by the bluetooth.For these elm 327,they all can not update.
Q:IF it need pairing code?
A:Yeah,it need,the pairing code is 1234.
