Product Attribute:
Brand Name:OBDII Can USB auto scanner
Type:OBDII Can USB auto Diagnostic Tool
Function:auto OBDII scanner
Applicationt:
For VW, Audi, Seat Altea , Golf Plus etc
Production Description:

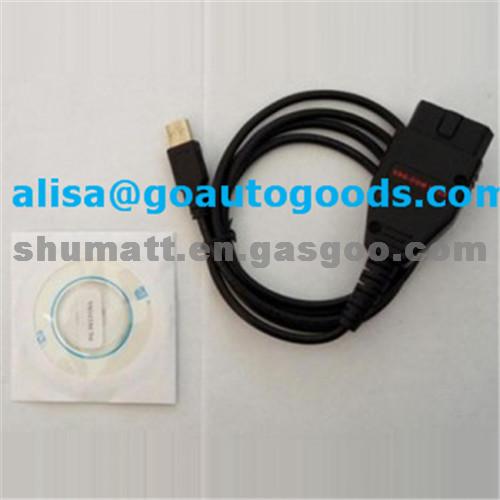

OBDII CAN-USB V704.1 Full compatible with the newest cars which require a direct CAN connection for diagnostics including all Golf-5 platform cars and latest Audi A3, A6 and A8,Q7,etc.
VAG COM 704.1 Description:
OBDII Can USB with the latest cars which require a direct CAN connection for diagnostics including all Golf-5 platform cars and latest Audi A3, A6 and A8,Q7.
Protocol timing indistinguishable from a real VAG/VAS tool.
The possibility that software is complete is on the xxxxx renewal, function all of, support the car type to 2007.
Features:
OBDII CAN-USB V704.1 Full
Compatible with the newest cars which require a direct CAN connection for diagnostics including all Golf-5 platform cars and latest Audi A3, A6 and A8,Q7,etc.
Protocol timing indistinguishable from a real VAG/VAS tool. Works reliably even with "difficult" control modules such as the 1991-1994 1Z Audi TDIs and the 1993-1994 Audi 2.6L with Hella ECU. Built-In VAG-Saver functionality -- instantly alerts the user if either the K/K1 line or the L/K2 line is shorted to Ground or Vbatt.
Full support for dual-K lines found in "new" (B6/8E chassis Audi A4 and 2002+ Audi A6,A8,etc.
1.USB connector plugs into most modern laptops!
2.Compatible with the latest cars which require a direct CAN connection for diagnostics including all Golf-5 platform cars and latest Audi A3, A6 and A8.
3.Protocol timing indistinguishable from a real VAG/VAS tool. Works reliably even with "difficult" control modules such as the 1991-1994 1Z Audi TDIs and the 1993-1994 Audi 2.6L with Hella ECU.
4.Built-In VAG-Saver functionality -- instantly alerts the user if either the K/K1 line or the L/K2 line is shorted to Ground or Vbatt.
5.Full support for dual-K lines found in "new" (B6/8E chassis Audi A4 and 2002+ Audi A6 -- no VAS-6017 required -- no manual switches!
6.Fully backwards compatible with older cars using a single K-line or K plus L.
7.Bi-Color (red/green) status/activity LED
Diagnostics Type including:
All Golf-5 platform cars (A5 platform) including:
. 2003+ VW Touran (1T chassis)
. 2004+ VW Golf (1K chassis)
. 2004+ VW Caddy (2K chassis)
. 2004+ Audi A3 (8P chassis)
. 2004+ Seat Altea (5P chassis)
. 2004+ Skoda Octavia (1Z chassis)
. 2005+ Seat Toledo (5P chassis)
. 2005+ Golf Plus (5M chassis)
. 2005+ Seat Leon (1P chassis)
. 2005.5+ Jetta (1K chassis)
. 2006+ Eos (1F chassis)
. 2003+ Audi A8 and A8L (D3 platform, 4E chassis)
. 2005+ Audi A6 (C6 platform, 4F chassis)
. 2005+ Audi A4 ("B7" platform) (some control modules)
. 2005.5+ VW Passat (B6 Platform, 3C chassis)
. 2006+ Audi Q7 (4L chassis)
. 2007+ Audi TT (8J chassis)
Warning:
The VAG-COM DIG cable is only available to the software version of 704.1. Never try to update it on Internet or it definitely will cause unavoidable hardware damage.
Suggestions:
1.Before connecting The VAG-COM DIG cable with the USB of PC, please check whether the software version is 704.1 in the button. However, if not, lease reset the VAG-COM DIG cable by the guide of the CD.
2.Please do not connect the PC with VAG-COM DIG cable onto internet.
3.Please ignore the reminding message of update.
4.Please do not download or update the software from the website of .
