Product Attribute:
Type:Engine Analyzer
Applicationt:
all brands
Production Description:

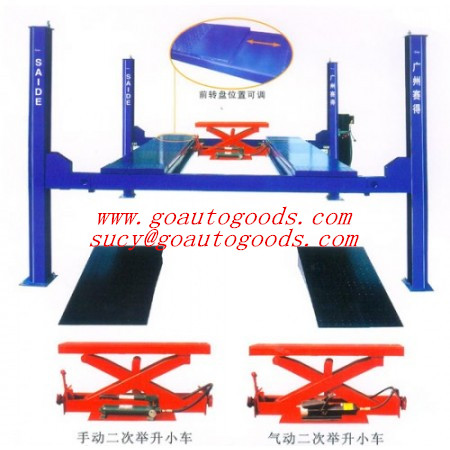

With unique design, QJY440B is an ideal lifting equipment specifically for the repair & maintenance, tyre-changing, and four-wheel aligning maintenance of various of high-grade cars, middle & small trucks and buses, etc. The advantages is easy operation, smooth & reliable working process, high lifting insurance quotiety and durability.
Auto four-wheel alignment lifting machine Characteristics:
1Hydraulic drive, rope transmission, stable lifting and adjustable level;
2Hydraulic station new-type appearance, fully-enclosed structure, simpleness in lifting operation, no leakage, stable oil pressure, low noise, and strong power;
3Hydro-cylinder adopts import gasket, durable, wear resistant and reliable;
4It is equipped with secondary beam, and operation means include electric operation, pneumatic operation and manual operation, etc, with secondary lifting weight of 2000Kg.
5Overload device, parachute gear, self-lock protection in the lifting course and lockup device on each upright post, etc. multiple protection functions;
6Suitable for all kinds of high-precision four-wheel locating instrument;
7Two power supplies: 380V and 220V;
Directly erect the lift on the ground as the thickness of concrete attains above 250mm ,otherwise need to manufacture the foundation in addition.
Lifting Weight |
Second lifting Weight |
Lifting height |
Second lifting height |
Rising time |
Power voltage |
Net weight |
|
4000Kg |
2000Kg |
1650mm |
360mm |
45s |
380V/220V 2.2KW |
1300Kg |
Features of Auto four-wheel alignment lifting machine
* New high quality 4-post lift 2013 new version, gathering with the advantages from the lifts manufactured by overseas and domestic.
* Polished design, two-layer hided structure.
* It is include hydraulic control, electrical control and mechanical control, 3 control systems ensure safety and reliability.
* Open or lock four safety device at the same time through one-hand operation.
* It implements safety device for steel-rope breaking and controlling switch for height limiting to make operator absolutely safe.
* Max lift weight is more than 3.5T safety standard.
