Product Attribute:
Length:385mm
Width:325mm
Height:370mm
Applicationt:
Yutong, Kinglong, Neoplan, Higer, Hyundai all bus models.
Production Description:

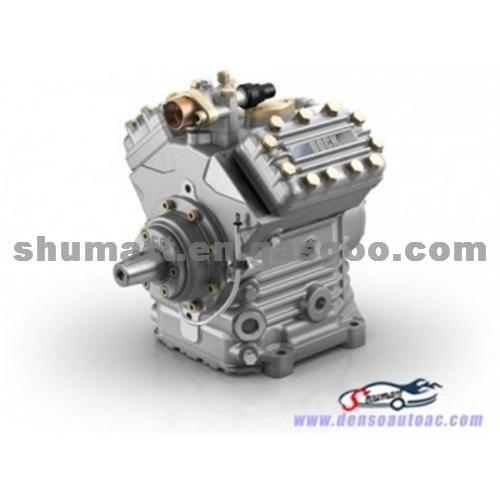

Original Bock compressor for universal bus AC compressor FK40/560N
High Pressure Bock FK40/560N Bus Air Compressor ,High Quality Bus Air Conditioner Compressor BOCK FK40/560N
Bock Compressor FK40 560N . Special pressure balance bypass prevent lube oil into inside, the efficiency much better. Patented infiltrated ceramic piston ring without gap at joint prolongs the service life. Unitary body cast by Aluminum Alloy with optimum heat transfer.
Features:
1. Long lifetime, original Bock compressor
2. Precise design Bock compressor, used for bus. Packaging & Delivery.
3. Competitive price
4. Excellent performance
5. Good quality and prompt delivery, all kinds of air conditioner spare parts can be supplied
Technical data
Number of cylinders / Bore / Stroke |
4 / 50 mm / 49 mm |
|
Swept volume |
385 cm³ |
|
Displacement (1450/3000 ¹/min) |
33,50 / 69,30 m³/h |
|
Mass moment of inertia |
0,0043 kgm² |
|
Weight |
35 kg |
|
Permissible range of rotation speeds |
500 - 3500 ¹/min |
|
Max. permissible pressure (LP/HP) |
19 / 28 bar |
|
Connection suction line SV |
28 mm - 1 1/8 " |
|
Connection discharge line DV |
22 mm - 7/8 " |
|
Lubrication |
Oil pump |
|
Oil type R134a, R404A, R407C, R507 |
FUCHS Reniso Triton SE 55 |
|
Oil type R22 |
FUCHS Reniso SP 46 |
|
Oil charge |
2,0 Ltr. |
|
Dimensions |
385 / 325 / 370 mm |
|
Length / Width / Height |
|
LP = Low pressure,HP = High pressure |
|
Technical data
Number of cylinders / Bore / Stroke |
4 / 50 mm / 49 mm |
|
Swept volume |
385 cm³ |
|
Displacement (1450/3000 ¹/min) |
33,50 / 69,30 m³/h |
|
Mass moment of inertia |
0,0043 kgm² |
|
Weight |
35 kg |
|
Permissible range of rotation speeds |
500 - 3500 ¹/min |
|
Max. permissible pressure (LP/HP) |
19 / 28 bar |
|
Connection suction line SV |
28 mm - 1 1/8 " |
|
Connection discharge line DV |
22 mm - 7/8 " |
|
Lubrication |
Oil pump |
|
Oil type R134a, R404A, R407C, R507 |
FUCHS Reniso Triton SE 55 |
|
Oil type R22 |
FUCHS Reniso SP 46 |
|
Oil charge |
2,0 Ltr. |
|
Dimensions |
385 / 325 / 370 mm |
|
Length / Width / Height |
|
LP = Low pressure,HP = High pressure |
|
Packaging Detail:
1. We use 2 Layers packing--First layer plastic packaged, moistureproof, waterproof; Second layer, carton package, resist compression, make sure commodity safe during transportation
2. Mark the product numbers and the QTY outside the carton
You may interested other necessary AC parts to exchange this compressor, such as ClutchGeneratorRefrigerant.
Attention: compressor has special requirement for the refrigerant, which important to keep compressor in long lifetime.
Here we supply 100% good refrigerant to make your compressor work in good condition!
