Product Attribute:
Type:Engine Analyzer
Applicationt:
All brands
Production Description:
Specifications
Language: English
Material: Plastic
Color: White
Weight: 1.5KG
Power: 0.12W/0.24W
Work voltage: 12V/24V
Work current: 0.01A
Work temperature: -10~40
Ambient temperature: -20~40
Relative humidity: < 90%
Display Screen: Without
Applicable signal: Car Signal, LED
Package: 290*90*240mm/11.31*3.51*9.36(L*W*H)

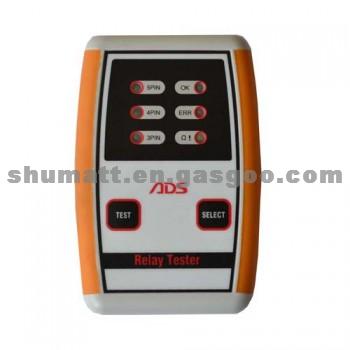

AR automotive relay tester is developed by ADS TECH. It is used to test relay and to check if it is in good condition. It can test relay that on cars, commercial vehicles, motorcycles, and specialty vehicles. It supports 12V and 24V two modes. Test 3, 4 and 5pin (flasher) relay. Test by pressing one key only, faster and easy than using multimeter.
Features
Support 12V and 24V two models.
Uses vehicles 12 Volt and 24 Volt battery for power.
Support to 3, 4 and 5 pin relay - tests the 3 most popular automotive relays.
Support relay from cars, commercial vehicles and motorcycles.
Quick off-the-car relay tester. Test by pressing one key only, faster and easy.
Green Light if relay is good - Red Light if relay is bad.
NOTES:
1. Modify the position of positive and negative when using the battery clip for your car.
2. Pay attention to the power supply when testing 12V and 24V relay.
3. Dont touch any liquid like water and oil.
4. Support 110V-220V Power supply, but not 0-36V.
Sonata Relay Actual Testing
1. Open the engine cover and find out the relay box.
2. Find out your testing relay.
3. Pick out the relay and check it 5 PIN male mouth model.
4. Find out the relay tester 5 PIN female mouth and connect it.
5. Really to test after connecting AR battery clip and your cars storage power.
6. Press select and 5 pin indicator light, press test and start to test. When the indicator lights OK but not the resistance indicator, it means fine to work. If not, it means the relay has came to damage.
7. AR relay tester overall connecting sketch map.
