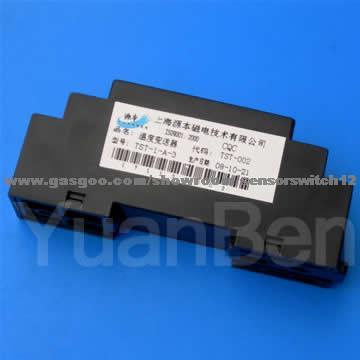

Temperature Transmitter For HVAC

Temperature Transmitter For HVAC

Typical Clients:  Auto

OEM No/Model:  TST-002

Market Type:  OE Market

Place of origin:  Shanghai,China

Unit Price:  USD 35.3

Price Terms:  FOB

Delivery Port:  Shanghai

Payment Terms:  T/T

Minimum Order:  1Piece/Pieces

Product Attribute:

Typical Clients:

Auto

Production Description:

Product TypeTST-100-B-2-1 temperature transmitter on...
Product IDP/N:TST-002
Product DescriptionTST-04-R is a multi-range 3-wire temperature transmitter with Pt100 or Pt1000 input and 0-5 V output. Main applications are in the HVAC sector,

where the control systems often require 0-5V, (0-10V) input signals. TST-05-R is designed for high reliability and good industrial performance.
TST-04-R is a multi-range 3-wire temperature transmitter with Pt100 or Pt1000 input and 0-5 V output. Main applications are in the HVAC sector, where the control systems often require 0-5V, (0-10V) input signals. TST-05-R is designed for high reliability and good industrial performance.   Feature 0-5 V output Rangeable with solder pads and potentiometers Temperature linear output Selectable sensor break function Short-circuit protected output Polarity protected power supply
Model TST-04-R (Pt100) TST-05-R (Pt1000)
Input Pt100 3-wire connection Pt1000 3-wire connection
Maximum lead resistance 11 / wire 11 / wire
Sensor break Upscale (>11 V), Downscale (0 V) Upscale (>11 V), Downscale (0 V)
Adjustments
Span 50/100/150/200 °C 50/100/150/200 °C
Fine adjustment ±10 % ±10 %
Zero -50 to +50 °C, ( -60 to +120 °F) -50 to +50 °C (-60 to +120 °F)
Output 0-5 V, 3-wire connection 0-5 V, 3-wire connection
Minimum load 10 k 10 k
Short-circuit protection Yes Yes
Operating Temperature -20 to +70 °C / -4 to +158 °F -20 to +70 °C / -4 to +158 °F
Linearization Temperature linear output Temperature linear output
Galvanic isolation No  No
Power Supply 5 to 10 VDC (polarity protected) 5 to 10 VDC (polarity protected)
Current consumption 12 mA 12 mA
Typical accuracy ±0.15 % of temperature span  ±0.15 % of temperature span
Mounting Rail acc. to DIN EN50022, 35 mm  Rail acc. to DIN EN50022, 35 mm
