Model Number: TD610A Android System Car PC Wifi 3G Car DVD Player car usb media player navigation |

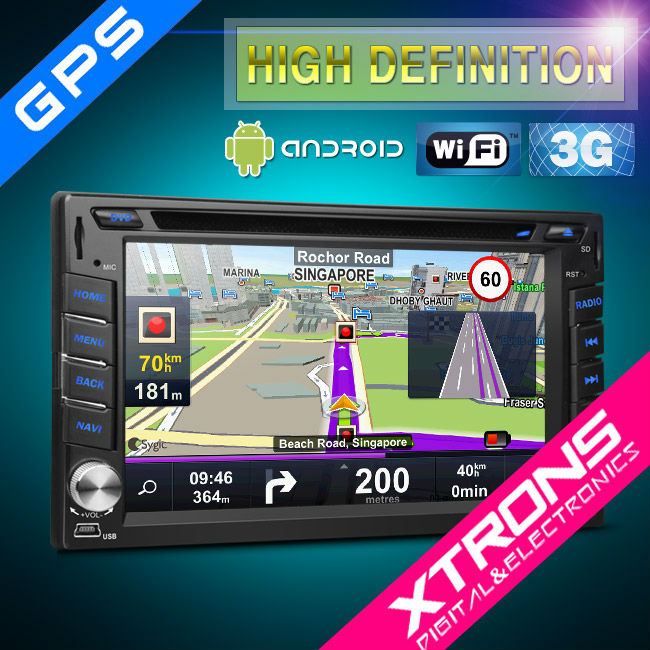

Title | 6.2 Inch 16:9 TFT LCD Universal 2 Din DVD Player Touch Screen (Android System) |
Main Function | HD Digital Screen 800*480/ Region-Free DVD Player/ FM/AM (support RDS)/ TV /Built-in Bluetooth/A2DP/phonebook/ Multi-media/Reversing Camera Input/ Touch Control/New UI Design /GPS/Android Navi Software/Built in WIFI, support 3G internet/Steering Wheel Control/ Language Selectable |
Detail Function |
Video/Audio |
Video Format | Support MP3/WMA/WAV/APE/FLAC/ACC/OGG/AC3, and etc |
Audio Format | Support RMVB/AVI/MPG/MPEG/WMA/VOB/MOV/ASF/FLV/3GP/MP4 , and etc |
Video Input | BT.656 input |
Video Output | 24 RGB digital output |
Audio Output | IIS |
Audio Input | IIS |
EQ | Support pop, jazz, dance, classic, rock, normal, customized mode, treble/fade/bass/balance, loudness |
Max Audio Output | 4 x 45W |
Signal-To-Noise Ratio | >80db |
Disc |
Anti-Shock | 16Mbit Electronic anti-shock (3s for DVD, 10 for CD) |
12cm Disc Type | DVD-Video, DVD±R/RW, DVD-ROM, CD-DA, CD-ROM, CD-R, CD-RW XviD,CD-DA,CD-TEXT |
Media Format | Support MP3, WMA, MPEG1/2/4, JPEG, DivX, |
Region | Region decode selectable |
Memory Support | Yes |
Audio SNR | 80dB |
Dynamic Range | 85dB |
Frequency Response | 50Hz ~2KHz(±3dB) |
TV |
Analog TV Built-in.(option) | |
Digital TV | DVB-T(MPEG4), ATSC, ISDB-T built-in. (option) |
FM/AM Radio |
FM Tuning Range | 87.5-108 (Europe) 87.5-107.9 (America) 65.0-108.0 (Russia) 36 stations preset |
RDS | Yes |
Usable sensitivity(-30dB) | <12dBuV |
S/N | >60dB |
Separation | >28dB |
Frequency Response Range | 30Hz~15KHz (±3dB) |
AM Frequency Range | 522-1620 (Europe) 530-1710 (America) 522-1620 (Russia) 18 stations preset |
Usable sensitivity (-20dB) | <30dBuV |
S/N | >48dB |
Frequency Response Range | 50Hz~1.8KHz (±3dB) |
Ipod/Iphone/Ipad |
Main Functions | iPod video, iPhone / iPad audio playback/charge |
Display | Songs, Artist, Album, Genres, Composers |
Additional Features |
Steering Wheel Control | 20 virtual keys setup |
Car Status Display | (Temperature, fan, safety belt, wipe blade, door closed, parking sensor and etc) |
USB/SD Card Port | USB/SD (MAX 32GB or <1500 files) |
USB | USB input *2,Support Samsung, Blackberry, HTC, Motorola phone and other USB device |
SD | SD slot * 1 |
Accessories | 1 x GPS Antenna |
1x USB Cable |
1x ISO Wiring Harness |
1x Ipod Control cable |
2x RCA cable |
1x WIFI dongle |
1x Remote control |
2x Installing kit |
