Model number: TD610A
| |

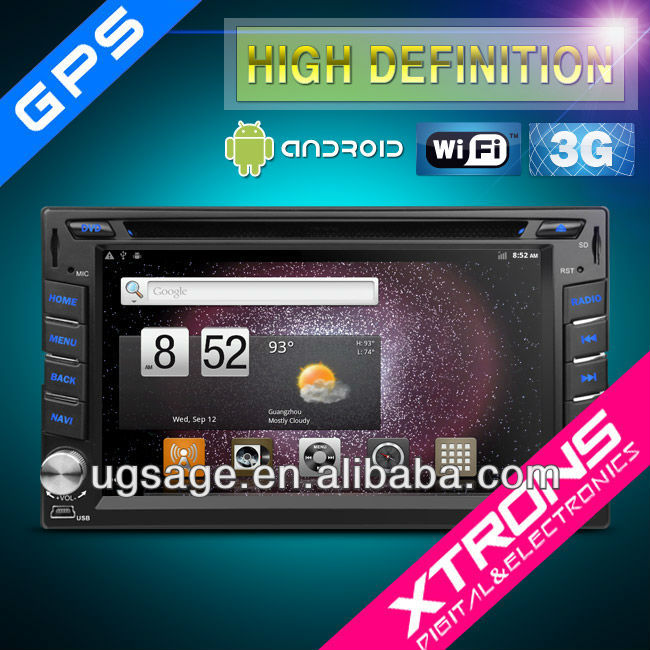

Title | 6.2inch 16:9 TFT LCD Universal 2 Din DVD player Touch screen(android system) | |
Main function | HD Digital Screen 800*480/ Region-Free DVD Player/ FM/AM (support RDS)/ TV /Built-in Bluetooth/A2DP/phonebook/ Multi-media/Reversing Camera Input/ Touch Control/New UI Design/ GPS/Android Navi software/built in WIFI,support 3G internet/steering wheel control/ Language selectable | |
Detail Function | |
General |
Operating voltage | 12V DC |
POWER Supply | 10.8~16V DC |
Maximum operating current | 10A |
Operating temperature | -20~+70°C |
Storage temperature | -30~ +80°C |
Operating humidity | 45%~ 80% (Relative humidity) |
Storage humidity | 30%~90% (Relative humidity) |
Dimensions | 178(L)*167(W)*100mm(H) |
Net Weight | 2.087kg |
Main System |
Main CPU | FREESCALE I.MX535D Cortex A8 1GHz |
RAM | DDR3 512MB |
Flash Memory Type | INAND |
iNand Momery | 4GB (8GB) |
Video Decode Support | 1080P |
OS | Android 2.3.4 |
GPS |
Supported Map Format | Google map online, Sygic, Papago, 3D maps, etc. |
Navigation Software | support SD/MMC/SDHC (Max for SDHC 4GB~32GB) |
Voice | Yes |
Display |
Screen Dimension | 6.2inch 16:9 TFT LCD Universal |
Touch Screen | Resistance touch screen |
Screen Resolution | 800*480 digital screen |
Picture in Picture | Yes |
Internet | |
3G | Support 3G WCDMA 3G dongle or via phone as WIFI hot spot (3G dongle excluded) |
WIFI | Support WIFI USB Dongle (WIFI dongle included) |
File Management |
File Delection | Yes |
Android Apps Installation via profiles | Yes |
Main Functions | Support download, install and delete over 200,000 android apps via Google Play |
Desktop Applications | Weather, live wallpaper |
Input Method | Google, sougou, perpetual calendar, google translator and etc. |
Communication tools | MSN, Skype, Gmail, Twitter, Facebook, QQ, blogs, and etc |
3D Games | Plants V.S. Zombies, Save the birds, Fruit Ninja and etc. |
Video/Audio |
Video Format | Support MP3/WMA/WAV/APE/FLAC/ACC/OGG/AC3, and etc |
Audio Format | Support RMVB/AVI/MPG/MPEG/WMA/VOB/MOV/ASF/FLV/3GP/MP4 , and etc |
Video Input | BT.656 input |
Video Output | 24 RGB digital output |
Audio Output | IIS |
Audio Input | IIS |
EQ | Support pop, jazz, dance, classic, rock, normal, customized mode,treble/fade/bass/balance, loudness |
Max audio output | 4 x 45W |
Signal-To-Noise Ratio | >80db |
Disc |
Anti-Shock | 16Mbit Electronic anti-shock (3s for DVD, 10 for CD) |
12cm Disc Type | DVD-Video, DVD±R/RW, DVD-ROM, CD-DA, CD-ROM, CD-R, CD-RW XviD,CD-DA,CD-TEXT |
Media Format | Support MP3, WMA, MPEG1/2/4, JPEG, DivX, |
Region | Region decode selectable |
Memory support | Yes |
Audio SNR | 80dB |
Dynamic range | 85dB |
Frequency response | 50Hz ~2KHz(±3dB) |
TV |
Analog TV Built-in.(option) | |
Digital TV | DVB-T(MPEG4), ATSC, ISDB-T built-in. (option) |
FM/AM Radio |
FM Tuning Range | 87.5-108 (Europe) 87.5-107.9 (America) 65.0-108.0 (Russia) 36 stations preset |
RDS | Yes |
USABLE SENSITIVITY (-30dB) | <12dBuV |
S/N | >60dB |
SEPARATION | >28dB |
Frequency response range | 30Hz~15KHz (±3dB) |
AM Frequency Range | 522-1620 (Europe) 530-1710 (America) 522-1620 (Russia) 18 stations preset |
USABLE SENSITIVITY (-20dB) | <30dBuV |
S/N | >48dB |
Frequency response range | 50Hz~1.8KHz (±3dB) |
Ipod/Iphone/Ipad |
Main Functions | Ipod video, iphone/ipad audio playback/charge |
Display | Songs, Artist, Album, Genres, Composers |
Additional Features |
Steering wheel control | 20 virtual keys setup |
Car status display | (temperature,fan,safety belt,wipe blade,door closed,parking sensor and etc) |
USB/SD Card Port | USB/SD (MAX 32GB or <1500 files) |
USB | USB input *2,Support Samsung, Blackberry, HTC, Motorola phone and other usb device |
SD | SD slot * 1 |
Accessories | 1 x GPS Antenna |
1x USB Cable |
1x ISO Wiring Harness |
1x Ipod Control cable |
2x RCA cable |
1x Wifi dongle |
1x Remote control |
2x Installing kit |
| | | | |
