TD102 TD103 Forged Steel Cast Crankshaft 8194457 8126780 8194456

Product Attribute:

Supply Ability:600 Piece/Pieces per Month

Production Description:

          TD102 TD103
   Forged crankshaft,Engine 8194457 8126780 8194456   Parts,Liner Kits, Piston, Ring Set,Engine Bearing  Product Description

Specifications For   TD102 TD103   crankshaft

Features for   TD102   crankshaft

1:  material was cast or forged.

2:  Top Quality, 1 year warranty

3:  Fast Delivery & Good packing(harden cartons and plywood)

4:  One-step service

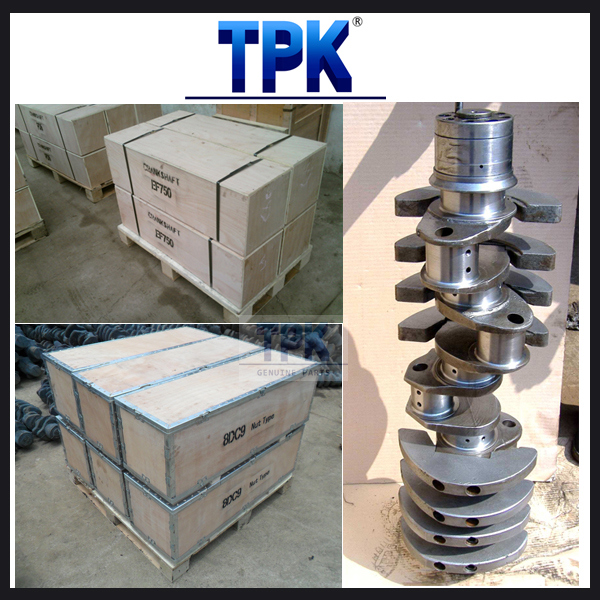

Reference Pictures of    TD103   crankshaft

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

Packing:

(1): TPK packing or nuetral packing

(2): according to your requirments

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Warranty

All our parts warranty 1 years, If problems from our parts itself, we will take all responsibilty on the spare parts and service.

If the troubles come from human factors, should take responsible for it.

        Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines. All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.

With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.

Q:   Do you have any other engine parts?

A:   yes, we have more than 10 kinds of engine repair parts like the followings:

1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger

Q: Do you have Some Other engine models?

A:  yes, for YAN_MAR:, we have the following models

V_O_L_V_O:

(1): TD100,TD100A,TD101,TD102,TD103
(2): TD120,TD121,TD122,TD123,
(3): TD60,TD61,TD70,TD71
(4): D4D,D6D,D7D,D12D,FH12,FH16

Q: Do you have Some Online service?

A:  yes, we have Whatspp, Wechat, Skype, YAHOO, QQ...

Articulated hauler: A28 Volvo BM (TD102GA) A30 Volvo BM (TD102KF: 497298) (TD102KH: 497299, 499287) (TD102KFE: 497297)
Loader: L150 Volvo BM msn 1001-2080; 60001-60500 (TD102GC: 497294) (TD102KCE: 497296)
Loader: L150C Volvo BM msn 2081-2435, 60501-60618 (TD102KCE: 497296)
Loader: L160 Volvo BM msn 2960-, 60196- (TD102GB: 497771) (TD102KBE: 497292 optional low emission)
ENGINE KITS
1 11706269-V Overhaul kit TD101G; TD102GA, TD102GB, TD102GC; TD120KBE, TD102KF, TD102KH; [11706269-5]
TD102G: A28 (GA), L150 (GC), L160 (GB); TD102K: A30 (KF/KH), L160 (KBE)
1 11706268-V Overhaul kit TD102KCE, TD102KFE [11706268-7]
TD102K: A30 (KFE), L150 (KCE), L150C (KCE)
CYLINDER KIT
6 275630-V Cylinder kit TD101G; TD102GA, TD102GB, TD102GC; TD120KBE, TD102KF, TD102KH; [275630-2, 275082-6,
275395-2, 275071-9]
TD102G: A28 (GA), L150 (GC), L160 (GB); TD102K: A30 (KF/KH), L160 (KBE)
6 275638-V Cylinder kit TD102KCE, TD102KFE [275638, 275638-5]
TD102K: A30 (KFE), L150 (KCE), L150C (KCE)
6 275084-V Ring set [275084, 275084-2, 275313-5]
6 271157-V Cylinder liner oring kit Set of 3 orings with sealant, 2.4mm top ring thickness [271157, 271157-0, 270788-3]
1161277-V Sealant tube 20ml RTV sealant [1161277, 1161277-7]
11713514-V Sealant tube 300ml RTV sealant gun tube [11713514, 1161231-4, 11713514-5, 11167009-7]
422619-V Shim cylinder liner 0.20mm thick [422619-7]
422620-V Shim cylinder liner 0.30mm thick [422620-5]
422621-V Shim cylinder liner 0.50mm thick [422621-3]
BEARINGS
6 270124-V Bearing rod pair Std [270124, 270124-1]
270125-V Bearing rod pair 0.25mm [270125, 270125-8]
270126-V Bearing rod pair 0.50mm [270126, 270126-6]
7 270438-V Bearing main pair Std [270438, 270438-5, 7270438-0]
270439-V Bearing main pair 0.25mm [270439, 270439-3, 7270439-8]
270440-V Bearing main pair 0.50mm [270440, 270440-1, 7270440-6]
1 276758-V Thrust washer kit Std [276758, 276758-0, 7276758-5]
276759-V Thrust washer kit 0.10mm [276759, 276759-8, 7276759-3]
276760-V Thrust washer kit 0.20mm [276760, 276760-6, 7276760-1]
GASKET & SEALS
1 11997107-V Set cylinder head Set for 6 heads, with (1) thermostat [11997107, 11997107-7]
6 270789-V Gasket cylinder head with seal rings [270789, 270789-1, 275742-6]
6 422413-V Seal cylinder head Brass sleeve 11mm OD with seal [422413, 422413-5]
12 422414-V Seal cylinder head Brass sleeve 32mm OD with seal [422414, 422414-3]
12 422415-V Seal cylinder head Brass sleeve 18mm OD with seal [422415, 422415-0]
6 479260-V Seal cylinder head Water seal [479260, 479260-2, 423139-5]
1 276035-V Set valve cover Decarbonizing set, includes (6) 424693 vc gsk (6) 424694 vc gsk (6) 479260 water seal (12) 478074
valve cap (24) 941907 washer
6 424693-V Gasket valve cover Lower [424693-0, 469433-7]
6 424694-V Gasket valve cover Upper [424694-8, 46943405]
24 941907-V Spring washer [941907, 941907-8, 13941907-1]
1 424983-V Seal crankshaft front Seal [424983, 424983-5, 469507-8]
1 941666-V Seal crankshaft front Felt ring [941666-0]

1 424602-1 Gasket oil pan [424602-1, 11031047-1, 1545696-5, 1545129-7, 479264-4]
1 11031009-V Gasket oil pan For baffle plate [11031009, 11031009-1]
CAMSHAFT
12 479863-V Lifter Only for forged steel camshafts [479863, 479863-3]
VALVE TRAIN
6 479204-V Valve intake [479204-0, 1545290-7, 467502-1, 422016-6]
6 467855-V Valve exhaust [467855-3, 467682-1, 422017-4]
6 422762-V Valve guide Intake [422762, 422762-5]
6 1545135-V Valve guide [1545135, 11129092-0, 1545135-4]
12 467335-V Valve spring Inner [467335, 467335-6]
12 467334-V Valve spring Outer [467334, 467334-9]
24 468305 Valve lock
12 467506-V Washer valve spring [467506, 467506-2]
12 478074-V Valve stem cap [478074, 478074-8]
12 417135-V Valve stem seal [417135, 417135-1, 7417135-6]
6 467474-V Valve seat Intake [467474, 467474-3]
6 1545886-V Valve seat Exhaust [1545886, 1545886-2]
6 270946-V Injector sleeve Kit, includes sleeve (1545023) seal (466405) ring (466420) [270946, 270946-7]
6 1545023-V Injector sleeve Sleeve only [1545023, 1545023-2, 479163-8]
6 466405-V Seal injector sleeve Rubber seal [466405, 466405-8]
6 466420-V Ring injector sleeve Steel ring [466420, 466420-7]
24 422086-V Bolt cylinder head M19 x 198mm [422086, 422086-9, 467918-9]
CRANKSHAFT
1 6888669-V Crankshaft 10 holes in flywhell, 115cm length [6888669-6, 20381958-6, 8194490-2]
esn -278294
1 8126780-V Crankshaft 14 holes in flywheel [8126780, 8126780-9, 20381957-8, 8194456-3, 8194304-5]
esn 278924-
CONNECTING ROD
12 1545479-V Bolt conn rod [1545479, 1545479-6, 7417464]
OIL / LUBE SYSTEM
1 422314-V Bushing idler gear Oil pump idler gear [422314, 422314-5]
FUEL / INJECTOR
6 469455-V Seal injector Top of injector [469455, 469455, 948965-9]
12 947620-V Washer Leakoff line [947620, 947620-1, 946729-1, 6601761-7]
COOLING SYSTEM
