TD70 TD71 Forged Steel Cast Crankshaft Engine Parts

Product Attribute:

Supply Ability:600 Piece/Pieces per Month

Production Description:

          TD70 TD71
   Forged crankshaft 11706103 ,Engine   Parts,Liner Kits, Piston, Ring Set,Engine Bearing  Product Description

Specifications For   TD70 TD71  crankshaft

Features for   TD70     crankshaft

1:  material was cast or forged.

2:  Top Quality, 1 year warranty

3:  Fast Delivery & Good packing(harden cartons and plywood)

4:  One-step service

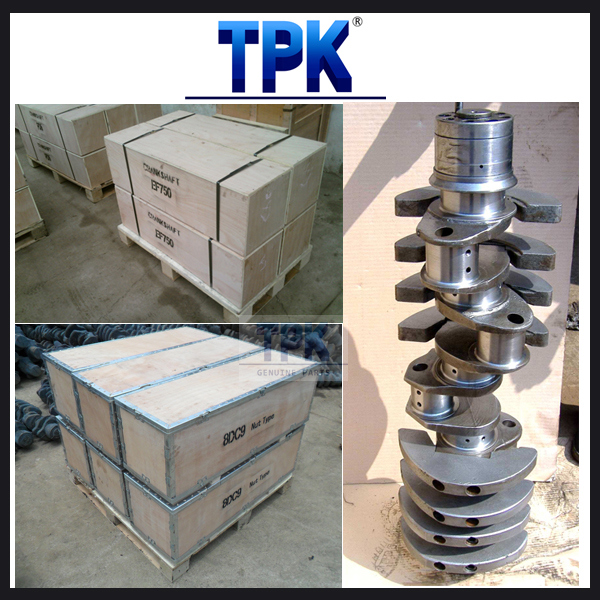

Reference Pictures of     TD71 crankshaft

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

Packing:

(1): TPK packing or nuetral packing

(2): according to your requirments

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Warranty

All our parts warranty 1 years, If problems from our parts itself, we will take all responsibilty on the spare parts and service.

If the troubles come from human factors, should take responsible for it.

        Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines. All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.

With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.

Q:   Do you have any other engine parts?

A:   yes, we have more than 10 kinds of engine repair parts like the followings:

1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger

Q: Do you have Some Other engine models?

A:  yes, for YAN_MAR:, we have the following models

V_O_L_V_O:

(1): TD100,TD100A,TD101,TD102,TD103
(2): TD120,TD121,TD122,TD123,
(3): TD60,TD61,TD70,TD71
(4): D4D,D6D,D7D,D12D,FH12,FH16

Q: Do you have Some Online service?

A:  yes, we have Whatspp, Wechat, Skype, YAHOO, QQ...

CE TD71 / 6.7L 6
Diesel
Cylinder
Stroke 2 heads per engine
Bore 4.125
5.118
Articulated hauler: A20 Volvo BM (TD71G: 497287, TD71KAE: 497283) A20C Volvo BM (TD71KF: 8188122)
Articulated hauler: A25 Volvo BM (TD71GA: 497286, TD71K: 497288) A25B Volvo BM msn 7001-7900, 68001-68100 (TD71K: 497288)
Excavator: EC300 Akerman msn 4371-4456 (TD71ACE: 867918) EC300 Akerman msn 4457-5147 (TD71GE: 497051)
Loader: L120 Volvo BM msn 5001-; 50301- ; 60001- (TD71G: 497285, TD71KBE: 497284)
Loader: L120B Volvo BM msn 8100- ; 60750- (TD71G: 497285)
ENGINE KITS
1 11706103-V Overhaul kit TD71G, TD71GA [11706103-6]
5350B, A20, A20C, A25, A25B, L120, L120B
1 11706923-V Overhaul kit TD71ACE, TD71GE [11706923-7]
EC300 Akerman, H14B Akerman: esn to 97292
CYLINDER KIT
6 275628-V Cylinder kit TD71G, TD71GA [275628-6, 275079-2, 275094-1, 876183-5]
5350B, A20, A20C, A25, A25B, L120, L120B: esn to 97292
6 876183-V Cylinder kit TD71ACE, TD71GE [876183, 876183-5]
EC300 Akerman: esn to 97292
6 271117-V Ring set [271117, 271117-4, 275312-7, 275375-4]
6 271159-V Cylinder liner oring kit Set for 1 cylinder, with sealant [271159, 271159-6 275778-9]
1 1161277-V Sealant tube 20ml RTV sealant [1161277, 1161277-7]
1 11713514-V Sealant tube 300ml RTV sealant gun tube [11713514, 1161231-4, 11713514-5, 11167009-7]
466878-V Shim cylinder liner 0.12mm thick [466878-6, 4804380-6]
466114-V Shim cylinder liner 0.20mm thick [466114-6, 4804381-4]
466183-V Shim cylinder liner 0.30mm thick [466183-1, 4804382-2]
466184-V Shim cylinder liner 0.50mm thick [466184-9, 4804383-0]
BEARINGS
6 270115-V Bearing rod pair Std [270115, 270115-9]
270116-V Bearing rod pair 0.25mm [270116, 270116-7]
270117-V Bearing rod pair 0.50mm [270117, 270117-5]
TD73MAINS Following mains and thrust washers for: esn - 97292
7 270432-V Bearing main pair Std [270432, 270432-8, 7270432-3]
270433-V Bearing main pair 0.25mm [270433, 270433-6, 7270433-1]
270434-V Bearing main pair 0.50mm [270434, 270434-4, 7270434-9]
1 276754-V Thrust washer kit Std [276754-9, 7276754-4, 421085-2, 7421085-7]
276755-V Thrust washer kit 0.10mm [276755-6, 7276755-1]
276756-V Thrust washer kit 0.20mm [276756-4, 7276756-9]
TD73MAINS Following mains and thrust washers for: esn 97293-
7 276894-V Bearing main pair Std [276894, 276894-3]
276895-V Bearing main pair 0.25mm [276895, 276895-0]
276896-V Bearing main pair 0.50mm [276896, 276896-4]
1 276890-V Thrust washer kit Std [276890, 276890-1]
276891-V Thrust washer kit 0.10mm [276891, 276891-9]
276892-V Thrust washer kit 0.20mm [276892, 276892-7]
GASKET & SEALS
1 11706077-V Set cylinder head Contains gaskets for both heads, 1 thermostat [11706077, 11706077-2]
TD71GA: 5350B, A25: esn to 97292
1 11997119-V Set cylinder head Contains gaskets for both heads, 1 thermostat [11997119, 11997119-0]
TD71ACE, TD71GE: EC300 esn to 97292; H14B esn -97292

1 11997121-V Set cylinder head Contains gaskets for both heads, 1 thermostat [11997121, 11997121-6]
TD71G: A20, L120, L120B: esn to 97292
1 11997120-V Set cylinder head Contains gaskets for both heads, 1 thermostat [11997120, 11997120-8]
TD71K/KAE, KBE, KF: A20, A20C, A25, A25B, L120: esn to 97292
1 270775-V Set conversion Block and oil pan gaskets [270775, 270775-0, 275784-7]
2 276816-V Gasket cylinder head Gasket and seal rings [276816, 276816-6, 275779-7]
12 465784-V Seal cylinder head Brass sleeve 26mm OD with seal [465784, 465784-7]
16 466421-V Seal cylinder head Brass sleeve 16mm OD with seal [466421, 466421-5]
2 422413-V Seal cylinder head Brass sleeve 11mm OD with seal [422413, 422413-5]
1 275781-V Set valve cover Decarbonizing set; contains valve cover gaskets, valve stem seals and caps, thermostat housing seals
[275781, 275781-3]
2 471520-V Gasket valve cover
1 477118-V Seal crankshaft front [477118, 477118-4, 471055-4]
1 477119-V Seal crankshaft rear [477119-2, 471056-2, 863407-3, 477119-2, 821755-6]
1 11030779-V Gasket oil pan 4-part gasket [424601-3, 11030779-0, 421025-8, 424919-9]
VALVE TRAIN
6 466379-V Valve intake [466379, 466379-5]
6 421680-V Valve exhaust [421680, 421680-0, 471195-8, 842080-4]
12 466386-V Valve guide [466386, 466386-0]
12 466383-V Valve spring Inner [466383, 466383-7]
12 466384-V Valve spring Outer [466384, 466384-5]
12 466382-V Valve spring cap [466382, 466382-9]
24 468305 Valve lock
12 478074-V Valve stem cap [478074, 478074-8]
12 469456-V Valve stem seal [469456, 469456-8, 407224]
6 421011-V Valve seat Intake [421011, 421011-8, 466373-8, 7421011-3]
6 466266-V Valve seat Exhaust [466266, 466266-4]
6 276130-V Injector sleeve Kit, includes sleeve (477928) seals, ring [276130-2, 273821-9, 477928-6]
6 466420-V Ring injector sleeve Steel ring [466420, 466420-7]
6 466405-V Seal injector sleeve Rubber seal [466405, 466405-8]
6 466922-V Oring injector sleeve Lower [466922, 466922-2]
40 471481-V Bolt cylinder head 150mm length [471481, 471481-2]
CONNECTING ROD
12 465815-V Bolt connecting rod [465815, 465815-9]
FUEL / INJECTOR
6 469455-V Seal injector Top of injector [469455, 469455, 948965-9]
12 947620-V Washer Leakoff line [947620, 947620-1, 946729-1, 6601761-7]
COOLING SYSTEM
1 8149182-V Thermostat 82C degrees [8149182, 8149182-1, 1544683-4, 1676306-2, 11000237-5]
All except: EC300
1 1661993-V Thermostat 76C degrees [1661993, 1661993-4]
EC300
1 1544710-V Thermostat seal Lower [1544710, 1544710-5]
1 471788-V Seal thermostat housing Cover to housing [471788, 471788-0]
1 471816-V Seal thermostat housing Connector to housing [471816, 471816-9]
TURBO / AIR
1 420618-V Gasket turbo mounting [420618, 420618-1, 466392-8, 411751-1, 7411751-6]
